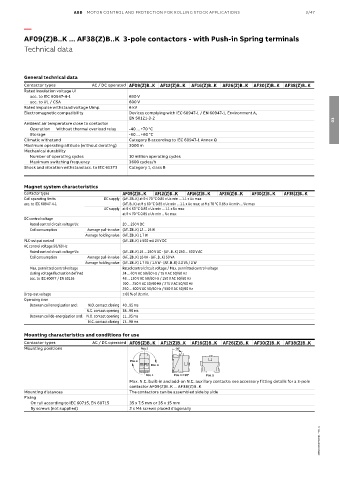

ABB  MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS                 3/47

          —

          AF09(Z)B..K ... AF38(Z)B..K  3-pole contactors - with Push-in Spring terminals
          Technical data




          General technical data
          Contactor types        AC / DC operated AF09(Z)B..K  AF12(Z)B..K  AF16(Z)B..K  AF26(Z)B..K  AF30(Z)B..K  AF38(Z)B..K
          Rated insulation voltage Ui
            acc. to IEC 60947-4-1             690 V
            acc. to UL / CSA                  600 V
          Rated impulse withstand voltage Uimp.  6 kV
          Electromagnetic compatibility       Devices complying with IEC 60947-1 / EN 60947-1, Environment A,
                                              EN 50121-3-2                                                            03
          Ambient air temperature close to contactor
            Operation  Without thermal overload relay  -40 ... +70 °C
            Storage                           -60 ... +80 °C
          Climatic withstand                  Category B according to IEC 60947-1 Annex Q
          Maximum operating altitude (without derating)  3000 m
          Mechanical durability
            Number of operating cycles        10 million operating cycles
            Maximum switching frequency       3600 cycles/h
         Shock and vibration withstand acc. to IEC 61373  Category 1, class B


          Magnet system characteristics
          Contactor types                   AF09(Z)B..K  AF12(Z)B..K  AF16(Z)B..K  AF26(Z)B..K  AF30(Z)B..K  AF38(Z)B..K
          Coil operating limits      DC supply (AF..ZB..K) at θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
          acc. to IEC 60947-4-1             (AF..B..K) at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max; at θ ≤ 70 °C 0.85 x Uc min ... Uc max
                                      AC supply at θ ≤ 60 °C 0.85 x Uc min ... 1.1 x Uc max
                                            at θ ≤ 70 °C 0.85 x Uc min ... Uc max
          DC control voltage
            Rated control circuit voltage Uc  20 ... 250 V DC
            Coil consumption    Average pull-in value (AF..ZB..K) 12 ... 16 W
                               Average holding value (AF..ZB..K) 1.7 W
          PLC-output control                (AF..ZB..K) ≥ 500 mA 24 V DC
          AC control voltage 50/60 Hz
            Rated control circuit voltage Uc  (AF..ZB..K) 24 ... 250 V AC - (AF..B..K) 250 ... 500 V AC
            Coil consumption    Average pull-in value (AF..ZB..K) 16 VA - (AF..B..K) 50 VA
                               Average holding value (AF..ZB..K) 1.7 VA / 1.5 W - (AF..B..K) 2.2 VA / 2 W
            Max. permitted control voltage    Rated control circuit voltage / Max. permitted control voltage
            during voltage fluctuation defined    24 ... 60 V AC 50/60 Hz / 75 V AC 50/60 Hz
            acc. to IEC 60077 / EN 50155    48 ... 130 V AC 50/60 Hz / 150 V AC 50/60 Hz
                                            100 ... 250 V AC 50/60 Hz / 275 V AC 50/60 Hz
                                            250 ... 500 V AC 50/60 Hz / 550 V AC 50/60 Hz
          Drop-out voltage                  ≤ 60 % of Uc min.
          Operating time
            Between coil energization and:  N.O. contact closing 40...95 ms
                               N.C. contact opening 38...90 ms
            Between coil de-energization and: N.O. contact opening 11...95 ms
                                N.C. contact closing 13...98 ms

          Mounting characteristics and conditions for use
          Contactor types        AC / DC operated AF09(Z)B..K  AF12(Z)B..K  AF16(Z)B..K  AF26(Z)B..K  AF30(Z)B..K  AF38(Z)B..K
          Mounting positions                      Pos. 2       -30°

                                               Pos. 4
                                                      Pos. 3
                                                    Pos. 1    Pos. 1 ± 30°  Pos. 5
                                              Max. N.C. built-in and add-on N.C. auxiliary contacts: see accessory fitting details for a 3-pole
                                              contactor AF09(Z)B..K ... AF38(Z)B..K
          Mounting distances                  The contactors can be assembled side by side
          Fixing
            On rail according to IEC 60715, EN 60715  35 x 7.5 mm or 35 x 15 mm
            By screws (not supplied)          2 x M4 screws placed diagonally


                                                                                                                 1SBC100607S0201 - Rev. A
