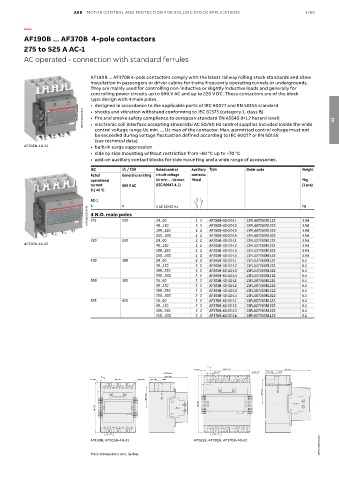

Page 117 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/65

—

AF190B ... AF370B 4-pole contactors
275 to 525 A AC-1
AC operated - connection with standard ferrules

AF190B ... AF370B 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They are mainly used for controlling non-inductive or slightly inductive loads and generally for
controlling power circuits up to 690 V AC and up to 220 V DC. These contactors are of the block
type design with 4 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SFC101220V0001 • fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level) 03
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide
control voltage range Uc min. ... Uc max of the contactor. Max. permitted control voltage must not
be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
(see technical data)
AF205B-40-22 • built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.

IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated General use rating circuit voltage contacts
operational Uc min. … Uc max. fitted Pkg
current 600 V AC (IEC 60947-4-1) (1 pce)
θ ≤ 40 °C
AC-1
A A V AC 50/60 Hz kg
1SFC101222V0001 4 N.O. main poles 24...60 2 2 AF190B-40-22-11 1SFL487263R1122 3.94
230
275
48...130
1SFL487263R1322
AF190B-40-22-13
100...250 2 2 AF190B-40-22-12 1SFL487263R1222 3.94
2 2
3.94
250…500 2 2 AF190B-40-22-14 1SFL487263R1422 3.94
350 250 24...60 2 2 AF205B-40-22-11 1SFL527263R1122 3.94
AF370B-40-22 48...130 2 2 AF205B-40-22-12 1SFL527263R1222 3.94
100...250 2 2 AF205B-40-22-13 1SFL527263R1322 3.94
250…500 2 2 AF205B-40-22-14 1SFL527263R1422 3.94
400 300 24...60 2 2 AF265B-40-22-11 1SFL547263R1122 6.4
48...130 2 2 AF265B-40-22-12 1SFL547263R1222 6.4
100...250 2 2 AF265B-40-22-13 1SFL547263R1322 6.4
250…500 2 2 AF265B-40-22-14 1SFL547263R1422 6.4
500 350 24...60 2 2 AF305B-40-22-11 1SFL587263R1122 6.4
48...130 2 2 AF305B-40-22-12 1SFL587263R1222 6.4
100...250 2 2 AF305B-40-22-13 1SFL587263R1322 6.4
250…500 2 2 AF305B-40-22-14 1SFL587263R1422 6.4
525 420 24...60 2 2 AF370B-40-22-11 1SFL607263R1122 6.4
48...130 2 2 AF370B-40-22-12 1SFL607263R1222 6.4
100...250 2 2 AF370B-40-22-13 1SFL607263R1322 6.4
250…500 2 2 AF370B-40-22-14 1SFL607263R1422 6.4

A
10 0.39" 183.75 7.23" 180 7.09"
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
SECTION A-A
A 152.5 6.00"
10 0.39" 140 5.51" ø 8.5 0.33" 35.5 1.40" 5 0.20"
94.7 3.73" 33.4 1.31"
83.5 3.29" 29.5 1.16"
225 8.86"
196 7.72"

35 1.38" 43.75 1.72"
1SFC101287C0201 1SFC101287C0201
AF190B, AF205B-40-22 AF265B, AF305B, AF370B-40-22
Main dimensions mm, inches
