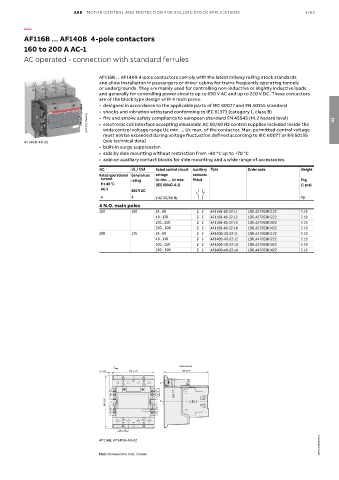

Page 115 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/63

—

AF116B ... AF140B 4-pole contactors
160 to 200 A AC-1
AC operated - connection with standard ferrules

AF116B ... AF140B 4-pole contactors comply with the latest railway rolling stock standards
and allow installation in passengers or driver cabins for trains frequently operating tunnels
or undergrounds. They are mainly used for controlling non-inductive or slightly inductive loads
and generally for controlling power circuits up to 690 V AC and up to 220 V DC. These contactors
are of the block type design with 4 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
1SFC101217V0002 • fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level) 03
• electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the
wide control voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage
must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
AF140B-40-22 (see technical data)
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.

IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts
current rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C (IEC 60947-4-1) (1 pce)
AC-1 600 V AC
A A V AC 50/60 Hz kg
4 N.O. main poles
160 160 24...60 2 2 AF116B-40-22-11 1SFL427263R1122 2.19
48...130 2 2 AF116B-40-22-12 1SFL427263R1222 2.19
100...250 2 2 AF116B-40-22-13 1SFL427263R1322 2.19
250…500 2 2 AF116B-40-22-14 1SFL427263R1422 2.19
200 175 24...60 2 2 AF140B-40-22-11 1SFL447263R1122 2.19
48...130 2 2 AF140B-40-22-12 1SFL447263R1222 2.19
100...250 2 2 AF140B-40-22-13 1SFL447263R1322 2.19
250…500 2 2 AF140B-40-22-14 1SFL447263R1422 2.19

SECTION A-A
A A SECTION A-A
10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04" 128 5.04"

55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91"

30 1.18" 30 1.18"
1SFC101285C0201 1SFC101285C0201
AF116B, AF140B-40-22

Main dimensions mm, inches
