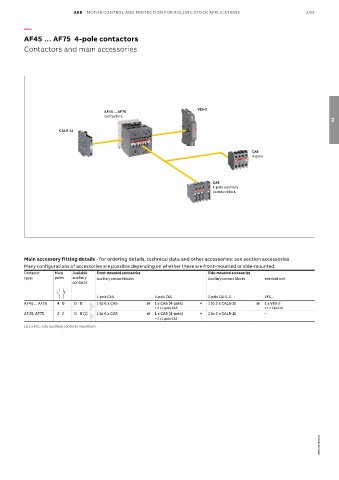

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/61

—

AF45 … AF75 4-pole contactors
Contactors and main accessories

VE5-2
AF45 ... AF75
contactors
03
CAL5-11

CA5
4-pole

CA5
1-pole auxiliary
contact block

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks Interlock unit
contacts

1-pole CA5.. 4-pole CA5.. 2-pole CAL5-11 VE5-..
AF45 ... AF75 4 0 0 0 1 to 6 x CA5 or 1 x CA5 (4-pole) + 1 to 2 x CAL5-11 or 1 x VE5-2
+ 2 x 1-pole CA5 + 1 x CAL5-11
AF45, AF75 2 2 0 0 (1) 1 to 6 x CA5 or 1 x CA5 (4-pole) + 1 to 2 x CAL5-11 –
+ 2 x 1-pole CA5
(1) 2 x N.C. CA5 auxiliary contacts maximum.
