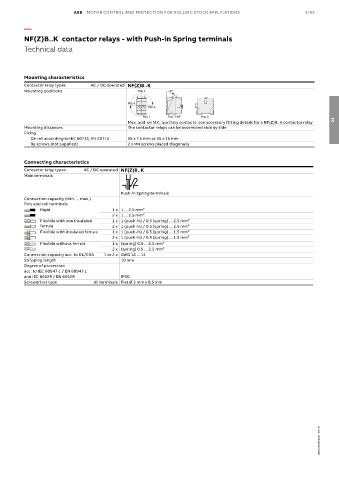

Page 147 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/95

—

NF(Z)B..K contactor relays - with Push-in Spring terminals
Technical data

Mounting characteristics
Contactor relay types AC / DC operated NF(Z)B..K
Mounting positions Pos. 2 -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1-30° Pos. 5
Max. add-on N.C. auxiliary contacts: see accessory fitting details for a NF(Z)B..K contactor relay 03
Mounting distances The contactor relays can be assembled side by side
Fixing
On rail according to IEC 60715, EN 60715 35 x 7.5 mm or 35 x 15 mm
By screws (not supplied) 2 x M4 screws placed diagonally

Connecting characteristics
Contactor relay types AC / DC operated NF(Z)B..K
Main terminals

Push-in Spring terminals
Connection capacity (min. ... max.)
Pole and coil terminals
Rigid 1 x 1 ... 2.5 mm²
2 x 1 ... 2.5 mm²
Flexible with non insulated 1 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
ferrule 2 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
Flexible with insulated ferrule 1 x 1 (push-in) / 0.5 (spring) ... 1.5 mm²
2 x 1 (push-in) / 0.5 (spring) ... 1.5 mm²
Flexible without ferrule 1 x (spring) 0.5 ... 2.5 mm²
2 x (spring) 0.5 ... 2.5 mm²
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18 ... 14
Stripping length 10 mm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1
and IEC 60529 / EN 60529 IP20
Screwdriver type All terminals Flat Ø 3 mm x 0.5 mm

1SBC100619S0201 - Rev. B
