1/18 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
01

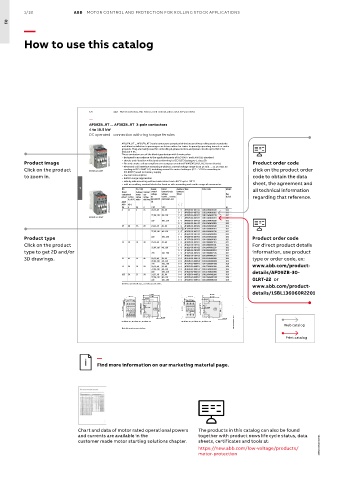

How to use this catalog

4/6 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS
—
AF09ZB..RT ... AF38ZB..RT 3-pole contactors
4 to 18.5 kW
DC operated - connection with ring tongue ferrules
AF09ZB..RT ... AF38ZB..RT 3-pole contactors comply with the latest railway rolling stock standards
and allow installation in passengers or driver cabins for trains frequently operating tunnels or under-
grounds. They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC.
These contactors are of the block type design with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
Product image 1SBC101407F0014 • shocks and vibration withstand conforming to IEC 61373 (category 1, class B) Product order code
• fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
Click on the product AF09ZB-30-10RT • electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. ac- click on the product order
cording to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
IEC 60077) used for battery supply
to zoom in. • low coil consumption code to obtain the data
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C sheet, the agreement and
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL / CSA Supply Rated Auxiliary Type Order code Weight all technical information
04
Rated 3-phase General control control circuit contacts
operational motor use voltage voltage fitted Pkg
power current rating rating Uc Uc min. … Uc max. (1 pce) regarding that reference.
≤ 40 °C 480 V 600 V AC (IEC 60077) (IEC 60947-4-1)
400 V AC-1 (1)
1SBC101409F0014 kW 4 A 25 hp 5 A 25 V DC V DC 1 0 AF09ZB-30-10RT-21 1SBL136060R2110 kg 0.32
AC-3
20...60
24, 33, 48
AF09ZB-30-10RT-22
1 0
1SBL136060R2210
0.32
72, 96, 110 48...130 0 1 AF09ZB-30-01RT-21 1SBL136060R2101 0.32
AF26ZB-30-00RT 0 1 AF09ZB-30-01RT-22 1SBL136060R2201 0.32
220 100...250 1 0 AF09ZB-30-10RT-23 1SBL136060R2310 0.32
0 1 AF09ZB-30-01RT-23 1SBL136060R2301 0.32
5.5 28 7.5 28 24, 33, 48 20...60 1 0 AF12ZB-30-10RT-21 1SBL156060R2110 0.32
0 1 AF12ZB-30-01RT-21 1SBL156060R2101 0.32
72, 96, 110 48...130 1 0 AF12ZB-30-10RT-22 1SBL156060R2210 0.32
0 1 AF12ZB-30-01RT-22 1SBL156060R2201 0.32
Product type 220 100...250 1 0 AF12ZB-30-10RT-23 1SBL156060R2310 0.32 Product order code
0 1
0.32
1SBL156060R2301
AF12ZB-30-01RT-23
7.5 30 10 30 24, 33, 48 20...60 1 0 AF16ZB-30-10RT-21 1SBL176060R2110 0.32
Click on the product 0 1 AF16ZB-30-01RT-21 1SBL176060R2101 0.32 For direct product details
72, 96, 110 48...130 1 0 AF16ZB-30-10RT-22 1SBL176060R2210 0.32
type to get 2D and/or 220 100...250 0 1 AF16ZB-30-01RT-22 1SBL176060R2201 0.32 information, use product
0.32
1SBL176060R2310
AF16ZB-30-10RT-23
1 0
0 1 AF16ZB-30-01RT-23 1SBL176060R2301 0.32
3D drawings. 11 45 15 45 24, 33, 48 20...60 0 0 AF26ZB-30-00RT-21 1SBL236060R2100 0.36 type or order code, ex:
72, 96, 110 48...130 0 0 AF26ZB-30-00RT-22 1SBL236060R2200 0.36
220 100...250 0 0 AF26ZB-30-00RT-23 1SBL236060R2300 0.36 www.abb.com/product-
15 50 20 50 24, 33, 48 20...60 0 0 AF30ZB-30-00RT-21 1SBL276060R2100 0.36
72, 96, 110 48...130 0 0 AF30ZB-30-00RT-22 1SBL276060R2200 0.36
220 100...250 0 0 AF30ZB-30-00RT-23 1SBL276060R2300 0.36 details/AF09ZB-30-
18.5 50 25 50 24, 33, 48 20...60 0 0 AF38ZB-30-00RT-21 1SBL296060R2100 0.36
72, 96, 110 48...130 0 0 AF38ZB-30-00RT-22 1SBL296060R2200 0.36
220 100...250 0 0 AF38ZB-30-00RT-23 1SBL296060R2300 0.36 01RT-22 or
(1) Other control voltages, see voltage code table.
www.abb.com/product-
details/1SBL136060R2201
77 3.03" 86 3.39"
45 1.77" 71 2.80" 35 1.38" 2 x 45 1.77" 80 3.15" 35 1.38" 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
10 0.39"
5 0.20" 10 0.39" 5 0.20"
AF09ZB..RT, AF12ZB..RT, AF16ZB..RT AF26ZB..RT, AF30ZB..RT, AF38ZB..RT 1SBC101810S0201 - Rev. A Web catalog
Main dimensions mm, inches
Print catalog
—
Find more information on our marketing material page.
Chart and data of motor rated operational powers The products in this catalog can also be found
and currents are available in the together with product news life cycle status, data
customer made motor starting solutions chapter. sheets, certificates and tools at:
https://new.abb.com/low-voltage/products/ 1SBC100542S0201
motor-protection
