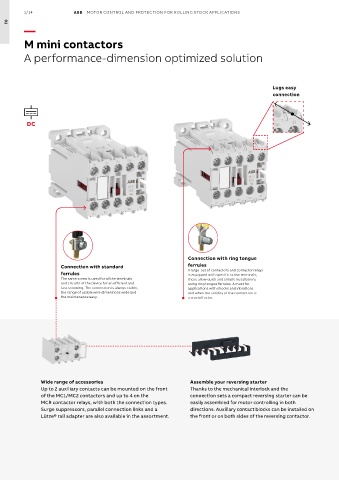

1/14 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
01
M mini contactors

A performance-dimension optimized solution

Lugs easy
connection

DC

Connection with ring tongue
Connection with standard ferrules
ferrules A large set of contactors and contactor relays
is equipped with specific screw terminals;
The same screw is used for all the terminals these allow quick and simple installations
and circuits of the device for an efficient and using ring tongue ferrules. A must for
fast screwing. The connection is always stable, applications with shocks and vibrations
the range of usable wire dimensions wide and and when the solidity of the connection is
the maintenance easy. a crucial factor.

Wide range of accessories Assemble your reversing starter
Up to 2 auxiliary contacts can be mounted on the front Thanks to the mechanical interlock and the
of the MC1/MC2 contactors and up to 4 on the connection sets a compact reversing starter can be
MCR contactor relays, with both the connection types. easily assembled for motor controlling in both
Surge suppressors, parallel connection links and a directions. Auxiliary contact blocks can be installed on
Lütze® rail adapter are also available in the assortment. the front or on both sides of the reversing contactor.
