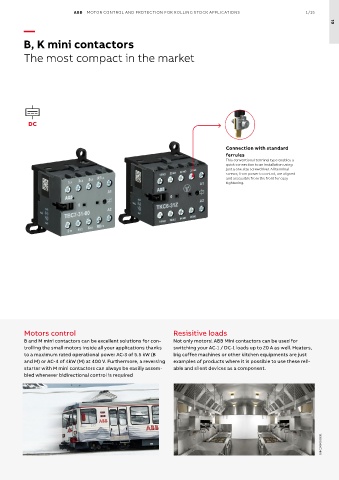

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 1/15
01
—

B, K mini contactors

The most compact in the market

DC

Connection with standard
ferrules
This conventional terminal type enables a
quick connection to an installation using
just a one size screwdriver. All terminal
screws, from power to control, are aligned
and accessible from the front for easy
tightening.

Motors control Resisitive loads
B and M mini contactors can be excellent solutions for con- Not only motors! ABB Mini contactors can be used for
trolling the small motors inside all your applications thanks switching your AC-1 / DC-1 loads up to 20 A as well. Heaters,
to a maximum rated operational power AC-3 of 5.5 kW (B big coffee machines or other kitchen equipments are just
and M) or AC-4 of 4kW (M) at 400 V. Furthermore, a reversing examples of products where it is possible to use these reli-
starter with M mini contactors can always be easiliy assem- able and silent devices as a component.
bled whenever bidirectional control is required

1SBC100600S0201
