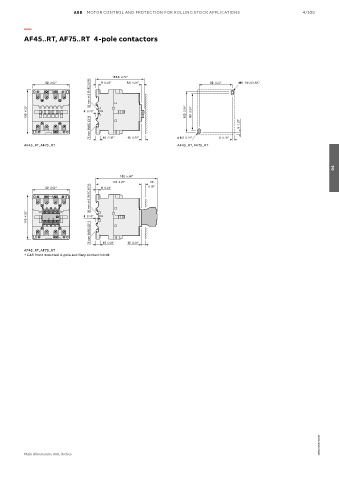

AF45..RT, AF75..RT 4-pole contactors

119.5 4.70"
35 mm x15 EN/IEC 60715
92 3.62" 6 0.24" 6.5 0.26" 82 3.23" M6 1/4-20 UNC

110 4.33" 4 0.16" 100 3.94" 90 3.54"
75 mm EN/IEC 60715 5 0.20"

AF45..RT, AF75..RT
AF45..RT, AF75..RT 10 0.39" 10 0.39" ø 6.2 0.24" 5 0.20"

04
152 5.98"
113 4.45" 10
35 mm x15 EN/IEC 60715
92 3.62" 6 0.24" 0.39"

110 4.33" 4 0.16"
75 mm EN/IEC 60715

AF45..RT, AF75..RT 10 0.39" 10 0.39"
+ CA5 front mounted 4-pole auxiliary contact block

1SBC100087S0201 1SBC100087S0201

Main dimensions mm, inches
