ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/113

—

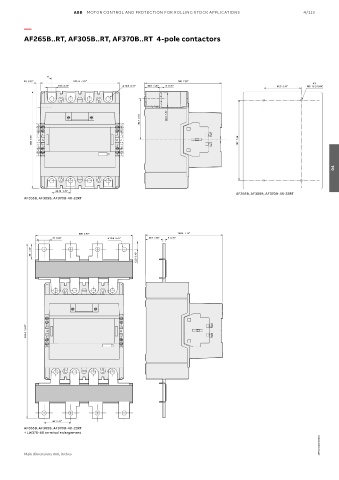

AF265B..RT, AF305B..RT, AF370B..RT 4-pole contactors

A
10 0.39" 183.75 7.23" 180 7.09"
4 X
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20" 87.5 3.44" M5 10-24 UNC

94.7 3.73" 33.4 1.31"

225 8.86" 187 7.36"

04

43.75 1.72"
AF265B, AF305B, AF370B-40-22RT
AF265B, AF305B, AF370B-40-22RT

226 8.90" 226 8.90" 180.4 7.10"
180.4 7.10"
25 0.98" 25 0.98" ø 10.5 0.41" 40.7 1.60 40.7 1.60" 5 0.20"" 5 0.20"
ø 10.5 0.41"
36 1.42" 36 1.42"
12.5 0.49" 12.5 0.49"

404.4 15.92" 404.4 15.92"

62 2.44" 62 2.44"
AF265B, AF305B, AF370B-40-22RT
+ LW370-40 terminal enlargement
1SFC101252C0201 1SFC101252C0201

Main dimensions mm, inches
