ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/111

—

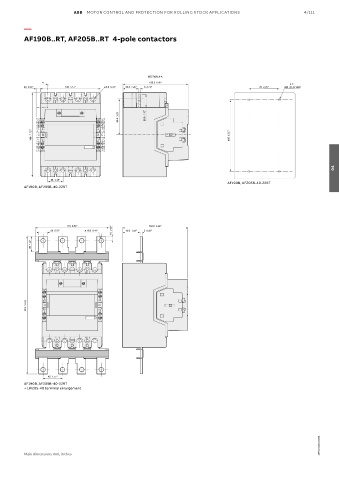

AF190B..RT, AF205B..RT 4-pole contactors

SECTION A-A
A 152.5 6.00"
4 X
10 0.39" 140 5.51" ø 8.5 0.33" 35.5 1.40" 5 0.20" 70 2.76" M5 10-24 UNC

83.5 3.29" 29.5 1.16"

196 7.72" 165 6.50"

04

35 1.38"
AF190B, AF205B-40-22RT
AF190B, AF205B-40-22RT

170 6.69" 170 6.69" 152.5 6.00" 152.5 6.00"
5 0.20"
20 0.79" 20 0.79" ø 10.5 0.41" ø 10.5 0.41" 10 0.39" 10 0.39" 40.5 1.59" 40.5 1.59" 5 0.20"
36 1.42" 36 1.42"

319 12.56" 319 12.56"

45 1.77" 45 1.77"
AF190B, AF205B-40-22RT
+ LW205-40 terminal enlargement

1SFC101251C0201 1SFC101251C0201

Main dimensions mm, inches
