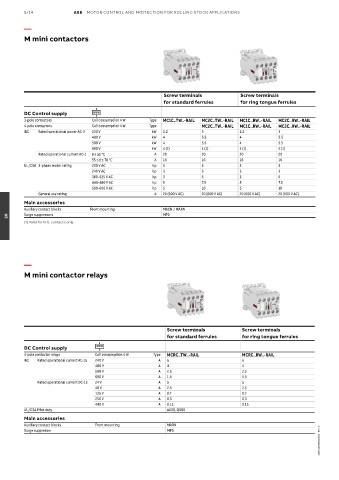

5/14 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

M mini contactors

Screw terminals Screw terminals
for standard ferrules for ring tongue ferrules
DC Control supply
3-pole contactors Coil consumption 4 W Type MC1C..TW..-RAIL MC2C..TW..-RAIL MC1C..RW..-RAIL MC2C..RW..-RAIL
4-pole contactors Coil consumption 4 W Type MC2C..TW..-RAIL MC1C..RW..-RAIL MC2C..RW..-RAIL
IEC Rated operational power AC-3 230 V kW 2.2 3 2.2 3
400 V kW 4 5.5 4 5.5
500 V kW 4 5.5 4 5.5
690 V kW 4 (1) 4 (1) 4 (1) 4 (1)
Rated operational current AC-1 θ ≤ 55 °C A 20 20 20 20
55 ≤ θ ≤ 70 °C A 16 16 16 16
UL/CSA 3-phase motor rating 200 V AC hp 3 3 3 3
240 V AC hp 3 3 3 3
380-425 V AC hp 3 5 3 5
440-480 V AC hp 5 7.5 5 7.5
500-600 V AC hp 5 10 5 10
General use rating A 20 (600 V AC) 20 (600 V AC) 20 (600 V AC) 20 (600 V AC)
Main accessories
Auxiliary contact blocks Front mounting MACN / MARN
Surge suppressors MP0
05
(1) Valid for N.O. contacts only.

—
M mini contactor relays

Screw terminals Screw terminals
for standard ferrules for ring tongue ferrules

DC Control supply
4-pole contactor relays Coil consumption 4 W Type MCRC..TW..-RAIL MCRC..RW..-RAIL
IEC Rated operational current AC-15 240 V A 6 6
400 V A 4 4
500 V A 2.5 2.5
690 V A 1.5 1.5
Rated operational current DC-13 24 V A 5 5
48 V A 2.5 2.5
125 V A 0.7 0.7
250 V A 0.3 0.3
440 V A 0.15 0.15
UL/CSA Pilot duty A600, Q600
Main accessories
Auxiliary contact blocks Front mounting MARN
2CDC102085C0201 - Rev. A
Surge suppressor MP0
