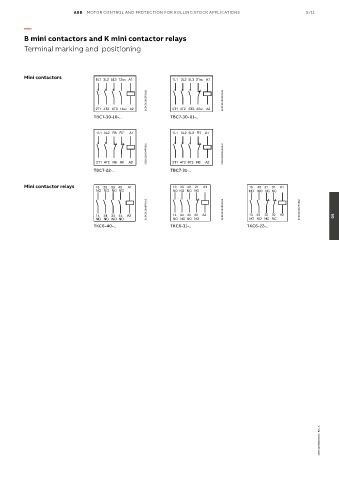

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 5/11

—
B mini contactors and K mini contactor relays

Terminal marking and positioning

Mini contactors 1L1 3L2 5L3 13NO A1 1L1 3L2 5L3 21NC A1

2CDC212002F0012 2CDC212003F0012

2T1 4T2 6T3 14NO A2 2T1 4T2 6T3 22NC A2
TBC7-30-10-.. TBC7-30-01-..
B6(7)-30-10 ...
B6(7)-30-01 ...
BC6(7)-30-10 ... BC6(7)-30-01 ...
1L1 3L2 R5 R7 A1 1L1 3L2 5L3 R7 A1
2CDC212004F0012 2CDC212005F0012

2T1 4T2 R6 R8 A2 2T1 4T2 6T3 R8 A2
TBC7-22-.. TBC7-31-..
B6(7)-22-00 ...
B6(7)-31-00 ...
BC6(7)-22-00 ... BC6(7)-31-00 ...
Mini contactor relays 13 23 33 43 A1 13 33 43 21 A1 13 43 21 31 A1
NO NO NO NO NO NO NO NO NO NO NC NC
2CDC212008F0012 2CDC212009F0012 2CDC212010F0012

14 24 34 44 A2 14 34 44 22 A2 14 44 22 32 A2 05
NO NO NO NO NO NO NO NO NO NO NC NC
K6-31Z ...
K6-22Z ...
TKC6-40-.. TKC6-31-.. TKC6-22-..
K6-40E ...
KC6-40E ... KC6-31Z ... KC6-22Z ...
K6S-31Z ... K6S-22Z ...

2CDC102086C0201 - Rev. C
