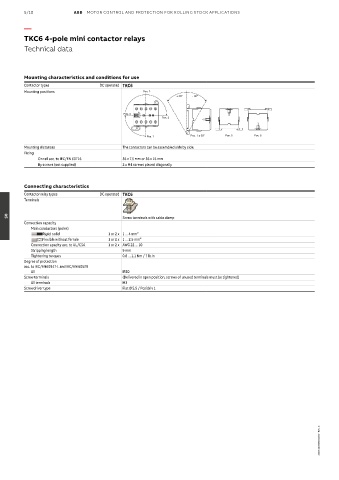

5/10 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
TKC6 4-pole mini contactor relays

Technical data

Mounting characteristics and conditions for use
Contactor types DC operated TKC6
Mounting positions Pos. 2
+ 30° - 30°

Pos. 4
Pos. 3

Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Mounting distances The contactors can be assembled side by side.
Fixing
On rail acc. to IEC/EN 60715 35 x 7.5 mm or 35 x 15 mm
By screws (not supplied) 2 x M4 screws placed diagonally

Connecting characteristics
Contactor relay types DC operated TKC6
Terminals

Screw terminals with cable clamp
05
Connection capacity
Main conductors (poles)
Rigid: solid 1 or 2 x 1 ... 4 mm²
Flexible without ferrule 1 or 2 x 1 ... 2.5 mm²
Connection apacity acc. to UL/CSA 1 or 2 x AWG 22 ... 10
Stripping length 9 mm
Tightening torques 0.8 ... 1.1 Nm / 7 lb.in
Degree of protection
acc. to IEC/EN60947-1 and IEC/EN 60529
All IP20
Screw terminals (Delivered in open position, screws of unused terminals must be tightened)
All terminals M3
Screwdriver type Flat Ø 5.5 / Pozidriv 1
