5/34 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
MC..-RAIL 3-pole and 4-pole mini contactors,

MCR..-RAIL 4-pole mini contactor relays

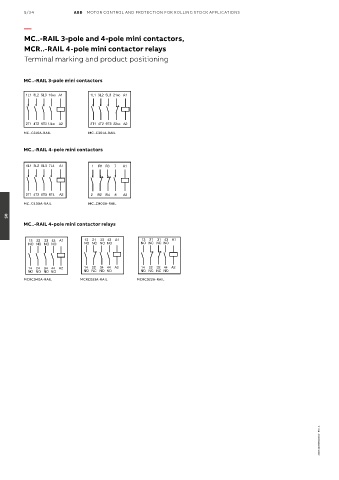

Terminal marking and product positioning

MC..-RAIL 3-pole mini contactors

1L1 3L2 5L3 13NO A1 1L1 3L2 5L3 21NC A1

2T1 4T2 6T3 14NO A2 2T1 4T2 6T3 22NC A2
MC..C310A-RAIL MC..C301A-RAIL
MC..301A
MC..310A
MC..-RAIL 4-pole mini contactors

1L1 3L2 5L3 7L4 A1 1 R1 R3 7 A1

2T1 4T2 6T3 8T4 A2 2 R2 R4 8 A2
MC..C400A-RAIL MC..CB00A-RAIL
MC..440A
MC..B00A
05
MC..-RAIL 4-pole mini contactor relays

13 23 33 43 A1 13 21 33 43 A1 13 21 31 43 A1
NO NO NO NO NO NC NO NO NO NC NC NO

14 24 34 44 A2 14 22 34 44 A2 14 22 32 44 A2
NO NO NO NO NO NC NO NO NO NC NC NO
MCR..022A
MCR..031A
MCRC040A-RAIL MCRC031A-RAIL MCRC022A-RAIL
MCR..040A
