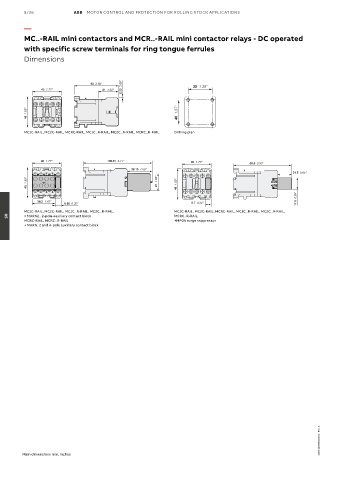

5/36 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
MC..-RAIL mini contactors and MCR..-RAIL mini contactor relays - DC operated

with specific screw terminals for ring tongue ferrules
Dimensions

2.20 0.08’’ 35 1.38"
68 2.68’’
45 1.77’’ 31 1.22’’

48 1.89’’ 40 1.57"

MC1C-RAIL, MC2C-RAIL, MCRC-RAIL, MC1C..R-RAIL, MC2C..R-RAIL, MCRC..R-RAIL Drilling plan

45 1.77’’ 106.15 4.17’’ 45 1.77’’ 89.5 3.53’’
38.15 1.50’’
21.5 0.85’’
48 1.89’’ 27 1.06’’ 48 1.89’’

17.5 0.69’’
36.2 1.43’’ 8.7 0.34’’
8.80 0.35’’
MC1C-RAIL, MC2C-RAIL, MC1C..R-RAIL, MC2C..R-RAIL, MC1C-RAIL, MC2C-RAIL, MCRC-RAIL, MC1C..R-RAIL, MC2C..R-RAIL,
+ MARN2.. 2-pole auxiliary contact block MCRC..R-RAIL
05
MCRC-RAIL, MCRC..R-RAIL +MP0A surge suppressor
+ MARN..2 and 4-pole auxiliary contact block

2CDC102085C0201 - Rev. A

Main dimensions mm, inches
