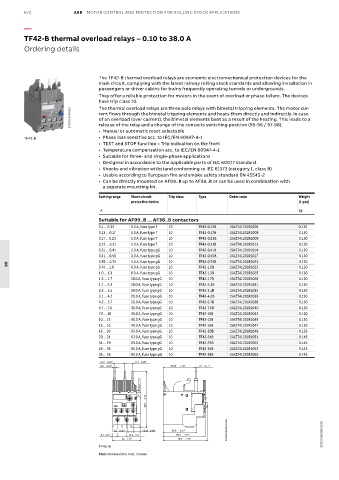

6/2 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
TF42-B thermal overload relays – 0.10 to 38.0 A

Ordering details

The TF42-B thermal overload relays are economic electromechanical protection devices for the
main circuit, complying with the latest railway rolling stock standards and allowing installation in
passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They offer a reliable protection for motors in the event of overload or phase failure. The devices
have trip class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor cur-
2CDC231001V0016 rent flows through the bimetal tripping elements and heats them directly and indirectly. In case
of an overload (over current), the bimetal elements bent as a result of the heating. This leads to a
release of the relay and a change of the contacts switching position (95-96 / 97-98).
• Manual or automatic reset selectable
TF42-B • Phase loss sensitive acc. to IEC/EN 60947-4-1
• TEST and STOP function – Trip indication on the front
• Temperature compensation acc. to IEC/EN 60947-4-1
• Suitable for three- and single-phase applications
• Designed in accordance to the applicable parts of IEC 60077 standard
• Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• Usable according to European fire and smoke safety standard EN 45545-2
• Can be directly mounted on AF09..B up to AF38..B or can be used in combination with
a seperate mounting kit.
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
Suitable for AF09..B ... AF38..B contactors
0.1 ... 0.13 0.5 A, fuse type T 10 TF42-0.13B 1SAZ741201R1005 0.130
0.13 ... 0.17 1.0 A, fuse type T 10 TF42-0.17B 1SAZ741201R1008 0.130
0.17 ... 0.23 1.0 A, fuse type T 10 TF42-0.23B 1SAZ741201R1009 0.130
0.23 ... 0.31 1.0 A, fuse type T 10 TF42-0.31B 1SAZ741201R1013 0.130
0.31 ... 0.41 2.0 A, fuse type gG 10 TF42-0.41B 1SAZ741201R1014 0.130
0.41 ... 0.55 2.0 A, fuse type gG 10 TF42-0.55B 1SAZ741201R1017 0.130
0.55 ... 0.74 4.0 A, fuse type gG 10 TF42-0.74B 1SAZ741201R1021 0.130
0.74 ... 1.0 6.0 A, fuse type gG 10 TF42-1.0B 1SAZ741201R1023 0.130
06
1.0 ... 1.3 6.0 A, fuse type gG 10 TF42-1.3B 1SAZ741201R1025 0.130
1.3 ... 1.7 10.0 A, fuse type gG 10 TF42-1.7B 1SAZ741201R1028 0.130
1.7 ... 2.3 10.0 A, fuse type gG 10 TF42-2.3B 1SAZ741201R1031 0.130
2.3 ... 3.1 10.0 A, fuse type gG 10 TF42-3.1B 1SAZ741201R1033 0.130
3.1 ... 4.2 20.0 A, fuse type gG 10 TF42-4.2B 1SAZ741201R1035 0.130
4.2 ... 5.7 20.0 A, fuse type gG 10 TF42-5.7B 1SAZ741201R1038 0.130
5.7 ... 7.6 35.0 A, fuse type gG 10 TF42-7.6B 1SAZ741201R1040 0.130
7.6 ... 10 35.0 A, fuse type gG 10 TF42-10B 1SAZ741201R1043 0.130
10 ... 13 40.0 A, fuse type gG 10 TF42-13B 1SAZ741201R1045 0.130
13 ... 16 40.0 A, fuse type gG 10 TF42-16B 1SAZ741201R1047 0.130
16 ... 20 63.0 A, fuse type gG 10 TF42-20B 1SAZ741201R1049 0.135
20 ... 24 63.0 A, fuse type gG 10 TF42-24B 1SAZ741201R1051 0.145
24 ... 29 63.0 A, fuse type gG 10 TF42-29B 1SAZ741201R1052 0.145
29 ... 35 80.0 A, fuse type gG 10 TF42-35B 1SAZ741201R1053 0.145
35 ... 38 80.0 A, fuse type gG 10 TF42-38B 1SAZ741201R1055 0.145
16.2 0.64" 11.7 0.46"
2.3 0.09" 50.25 1.98" 2.7 0.11"

3.48"
88.3

2CDC232005F0009
9.1 0.36" 12.35 0.49" 52.6 2.07"
8.1 0.32" 14.4 0.57" 66.4 2.61" 2CDC106106C0201
45 1.77" 70.5 2.78"
TF42-B
Main dimensions mm, inches
