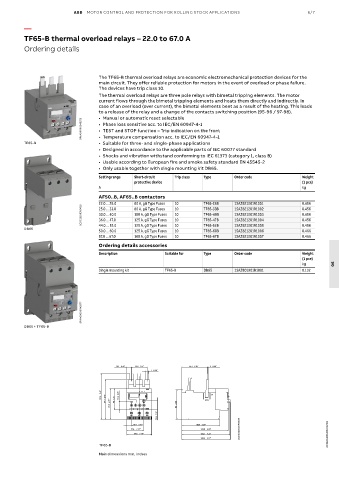

TF65-B thermal overload relays – 22.0 to 67.0 A

Ordering details

The TF65-B thermal overload relays are economic electromechanical protection devices for the
main circuit. They offer reliable protection for motors in the event of overload or phase failure.
The devices have trip class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor
current flows through the bimetal tripping elements and heats them directly and indirectly. In
case of an overload (over current), the bimetal elements bent as a result of the heating. This leads
to a release of the relay and a change of the contacts switching position (95-96 / 97-98).
• Manual or automatic reset selectable
9PAA00000045575 • Phase loss sensitive acc. to IEC/EN 60947-4-1
• TEST and STOP function – Trip indication on the front

• Suitable for three- and single-phase applications
TF65-B • Temperature compensation acc. to IEC/EN 60947-4-1
• Designed in accordance to the applicable parts of IEC 60077 standard
• Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• Usable according to European fire and smoke safety standard EN 45545-2
• Only usable together with single mounting kit DB65.
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
AF50..B, AF65..B contactors
22.0 ... 28.0 80 A, gG Type Fuses 10 TF65-28B 1SAZ821201R1001 0.456
2CDC231003V0015 30.0 ... 40.0 100 A, gG Type Fuses 10 TF65-40B 1SAZ821201R1003 0.456
TF65-33B
80 A, gG Type Fuses
10
1SAZ821201R1002
0.456
25.0 ... 33.0
0.456
1SAZ821201R1004
125 A, gG Type Fuses
10
TF65-47B
36.0 ... 47.0
DB65 44.0 ... 53.0 125 A, gG Type Fuses 10 TF65-53B 1SAZ821201R1005 0.456
50.0 ... 60.0 125 A, gG Type Fuses 10 TF65-60B 1SAZ821201R1006 0.466
57.0 ... 67.0 160 A, gG Type Fuses 10 TF65-67B 1SAZ821201R1007 0.466
Ordering details accessories
Description Suitable for Type Order code Weight
(1 pce)
kg 06
Single mounting kit TF65-B DB65 1SAZ801901R1001 0.132
9PAA00000045577

DB65 + TF65-B

10.1 0.40" 34.8 1.37" 55.7 2.19" 4 0.08"
7 0.28"

101.4 3.45" 87.7 3.45" 46 1.81" 16.6 0.65"
67.8 2.67" 65 2.56"

2T1 4T2 6T3 18.9 0.74"
10.4 0.41" 83.5 3.29"
37.4 1.47" 102.8 4.05" 2CDC232005F0009
54.9 2.16" 106.1 4.18" 2CDC106106C0201
106.9 4.21"
TF65-B
Main dimensions mm, inches
