ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 6/13

—

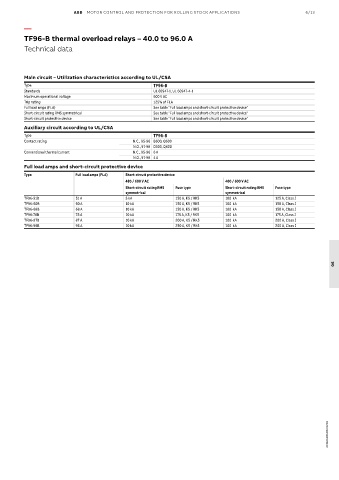

TF96-B thermal overload relays – 40.0 to 96.0 A

Technical data

Main circuit – Utilization characteristics according to UL/CSA
Type TF96-B
Standards UL 60947-1, UL 60947-4-1
Maximum operational voltage 600 V AC
Trip rating 125% of FLA
Full load amps (FLA) See table "Full load amps and short-circuit protective device"
Short-circuit rating RMS symmetrical See table "Full load amps and short-circuit protective device"
Short-circuit protective device See table "Full load amps and short-circuit protective device"
Auxiliary circuit according to UL/CSA
Type TF96-B
Contact rating N.C., 95-96 B600, Q600
N.O., 97-98 D300, Q600
Conventional thermal current N.C., 95-96 6 A
N.O., 97-98 4 A
Full load amps and short-circuit protective device
Type Full load amps (FLA) Short-circuit protective device
480 / 600 V AC 480 / 600 V AC
Short-circuit rating RMS Fuse type Short-circuit rating RMS Fuse type
symmetrical symmetrical
TF96-51B 51 A 5 kA 150 A, K5 / RK5 100 kA 125 A, Class J
TF96-60B 60 A 10 kA 150 A, K5 / RK5 100 kA 150 A, Class J
TF96-68B 68 A 10 kA 150 A, K5 / RK5 100 kA 150 A, Class J
TF96-78B 78 A 10 kA 175 A, K5 / RK5 100 kA 175 A, Class J
TF96-87B 87 A 10 kA 200 A, K5 / RK5 100 kA 200 A, Class J
TF96-96B 96 A 10 kA 250 A, K5 / RK5 100 kA 200 A, Class J
