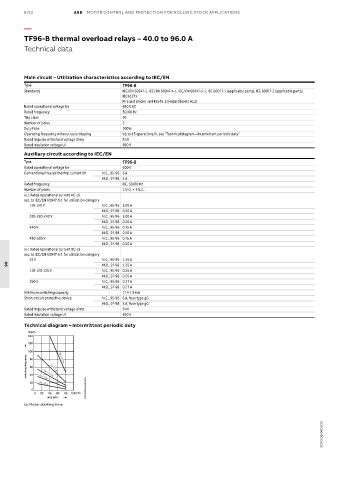

6/12 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
TF96-B thermal overload relays – 40.0 to 96.0 A

Technical data

Main circuit – Utilization characteristics according to IEC/EN
Type TF96-B
Standards IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts),
IEC61373
Fire and smoke : EN 45545-2 (Hazard levels HL2)
Rated operational voltage Ue 690 V AC
Rated frequency 50/60 Hz
Trip class 10
Number of poles 3
Duty time 100%
Operating frequency without early tripping Up to 15 operations/h, see "Technical diagram – Intermittent periodic duty"
Rated impulse withstand voltage Uimp 8 kV
Rated insulation voltage Ui 690 V
Auxiliary circuit according to IEC/EN
Type TF96-B
Rated operational voltage Ue 600 V
Conventional free air thermal current Ith N.C., 95-96 6 A
N.O., 97-98 4 A
Rated frequency DC, 50/60 Hz
Number of poles 1 N.O. + 1 N.C.
Ie / Rated operational current AC-15
acc. to IEC/EN 60947-5-1 for utilization category
110-120 V N.C., 95-96 3.00 A
N.O., 97-98 0.50 A
220-230-240 V N.C., 95-96 3.00 A
N.O., 97-98 0.50 A
440 V N.C., 95-96 0.75 A
N.O., 97-98 0.50 A
480-500 V N.C., 95-96 0.75 A
N.O., 97-98 0.50 A
Ie / Rated operational current DC-13
acc. to IEC/EN 60947-5-1 for utilization category
24 V N.C., 95-96 1.25 A
N.O., 97-98 1.25 A
06
110-120-125 V N.C., 95-96 0.55 A
N.O., 97-98 0.55 A
250 V N.C., 95-96 0.27 A
N.O., 97-98 0.27 A
Minimum switching capacity 17 V / 3 mA
Short-circuit protective device N.C., 95-96 6 A, fuse type gG
N.O., 97-98 4 A, fuse type gG
Rated impulse withstand voltage Uimp 6 kV
Rated insulation voltage Ui 690 V

Technical diagram – Intermittent periodic duty
(Op/h)
140
120
100 a
switching frequency 80 t = 1.5 s
t = 0.5 s
60
a
a
t = 1 s
40
a
a
20 t = 3 s
t = 5 s
0 2CDC232004F0214
0 20 40 60 80 100 (%)
duty ratio
ta: Motor starting time
