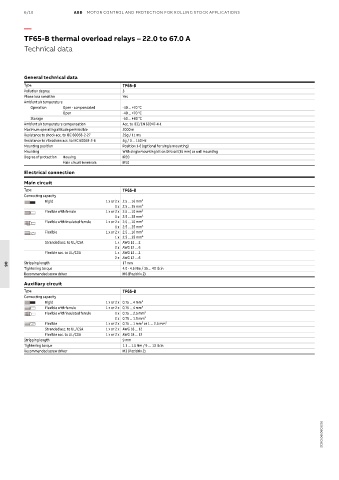

6/10 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
TF65-B thermal overload relays – 22.0 to 67.0 A

Technical data

General technical data
Type TF65-B
Pollution degree 3
Phase loss sensitive Yes
Ambient air temperature
Operation Open - compensated -40 ... +70 °C
Open -40 ... +70 °C
Storage -50 ... +80 °C
Ambient air temperature compensation Acc. to IEC/EN 60947-4-1
Maximum operating altitude permissible 2000 m
Resistance to shock acc. to IEC 60068-2-27 25g / 11 ms
Resistance to vibrations acc. to IEC 60068-2-6 5g / 3 ... 150 Hz
Mounting position Position 1-6 (optional for single mounting)
Mounting With single mounting kit on DIN rail (35 mm) or wall mounting
Degree of protection Housing IP20
Main circuit terminals IP10
Electrical connection
Main circuit
Type TF65-B
Connecting capacity
Rigid 1 x or 2 x 2.5 ... 16 mm²
1 x 2.5 ... 35 mm²
Flexible with ferrule 1 x or 2 x 2.5 ... 10 mm²
1 x 2.5 ... 35 mm²
Flexible with insulated ferrule 1 x or 2 x 2.5 ... 10 mm²
1 x 2.5 ... 35 mm²
Flexible 1 x or 2 x 2.5 ... 16 mm²
1 x 2.5 ... 35 mm²
Stranded acc. to UL/CSA 1 x AWG 12 ... 2
2 x AWG 12 ... 6
Flexible acc. to UL/CSA 1 x AWG 12 ... 2
2 x AWG 12 ... 6
Stripping length 17 mm
Tightening torque 4.0 - 4.5 Nm / 35 ... 40 Ib.in
06
Recommended screw driver M6 (Pozidriv 2)
Auxiliary circuit
Type TF65-B
Connecting capacity
Rigid 1 x or 2 x 0.75 ... 4 mm²
Flexible with ferrule 1 x or 2 x 0.75 ... 4 mm²
Flexible with insulated ferrule 1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 1.5 mm²
Flexible 1 x or 2 x 0.75 ... 1 mm² or 1 ... 2.5 mm²
Stranded acc. to UL/CSA 1 x or 2 x AWG 18 ... 12
Flexible acc. to UL/CSA 1 x or 2 x AWG 18 ... 12
Stripping length 9 mm
Tightening torque 1.1 ... 1.5 Nm / 9 … 13 Ib.in
Recommended screw driver M3 (Pozidriv 2)
