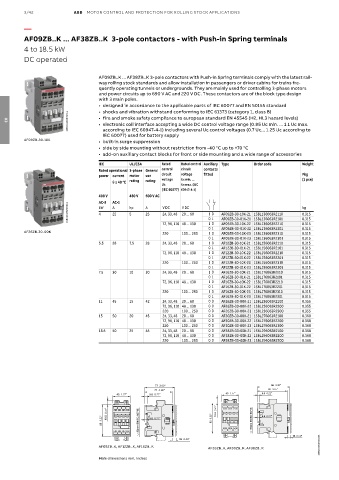

3/42 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

AF09ZB..K ... AF38ZB..K 3-pole contactors - with Push-in Spring terminals
4 to 18.5 kW
DC operated

AF09ZB..K ... AF38ZB..K 3-pole contactors with Push-in Spring terminals comply with the latest rail-
way rolling stock standards and allow installation in passengers or driver cabins for trains fre-
quently operating tunnels or undergrounds. They are mainly used for controlling 3-phase motors
and power circuits up to 690 V AC and 220 V DC. These contactors are of the block type design
with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
1SBC101560V0014 • fire and smoke safety compliance to european standard EN 45545 (H2, HL3 hazard levels)
• electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
03
according to IEC 60947-4-1) including several Uc control voltages (0.7 Uc... 1.25 Uc according to
IEC 60077) used for battery supply
AF09ZB-30-10K • built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
IEC UL/CSA Rated Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General control circuit contacts
power current motor use circuit voltage fitted Pkg
θ ≤ 40 °C rating rating voltage Uc min. … (1 pce)
Uc Uc max. (IEC
(IEC 60077) 60947-4-1)
400 V 480 V 600 V AC
AC-3 AC-1 hp A V DC V DC kg
1SBC101562V0014 4 25 5 25 24, 33, 48 20 ... 60 1 0 AF09ZB-30-10K-21 1SBL136063R2110 0.315
A
kW
0 1
0.315
AF09ZB-30-01K-21 1SBL136063R2101
72, 96, 110 48 ... 130 1 0 AF09ZB-30-10K-22 1SBL136063R2210 0.315
0 1 AF09ZB-30-01K-22 1SBL136063R2201 0.315
AF26ZB-30-00K
220 100 ... 250 1 0 AF09ZB-30-10K-23 1SBL136063R2310 0.315
0 1 AF09ZB-30-01K-23 1SBL136063R2301 0.315
5.5 28 7.5 28 24, 33, 48 20 ... 60 1 0 AF12ZB-30-10K-21 1SBL156063R2110 0.315
0 1 AF12ZB-30-01K-21 1SBL156063R2101 0.315
72, 96, 110 48 ... 130 1 0 AF12ZB-30-10K-22 1SBL156063R2210 0.315
0 1 AF12ZB-30-01K-22 1SBL156063R2201 0.315
220 100 ... 250 1 0 AF12ZB-30-10K-23 1SBL156063R2310 0.315
0 1 AF12ZB-30-01K-23 1SBL156063R2301 0.315
7.5 30 10 30 24, 33, 48 20 ... 60 1 0 AF16ZB-30-10K-21 1SBL176063R2110 0.315
0 1 AF16ZB-30-01K-21 1SBL176063R2101 0.315
72, 96, 110 48 ... 130 1 0 AF16ZB-30-10K-22 1SBL176063R2210 0.315
0 1 AF16ZB-30-01K-22 1SBL176063R2201 0.315
220 100 ... 250 1 0 AF16ZB-30-10K-23 1SBL176063R2310 0.315
0 1 AF16ZB-30-01K-23 1SBL176063R2301 0.315
11 45 15 42 24, 33, 48 20 ... 60 0 0 AF26ZB-30-00K-21 1SBL236063R2100 0.355
72, 96, 110 48 ... 130 0 0 AF26ZB-30-00K-22 1SBL236063R2200 0.355
220 100 ... 250 0 0 AF26ZB-30-00K-23 1SBL236063R2300 0.355
15 50 20 45 24, 33, 48 20 ... 60 0 0 AF30ZB-30-00K-21 1SBL276063R2100 0.360
72, 96, 110 48 ... 130 0 0 AF30ZB-30-00K-22 1SBL276063R2200 0.360
220 100 ... 250 0 0 AF30ZB-30-00K-23 1SBL276063R2300 0.360
18.5 50 25 45 24, 33, 48 20 ... 60 0 0 AF38ZB-30-00K-21 1SBL296063R2100 0.360
72, 96, 110 48 ... 130 0 0 AF38ZB-30-00K-22 1SBL296063R2200 0.360
220 100 ... 250 0 0 AF38ZB-30-00K-23 1SBL296063R2300 0.360

77 3.03" 86 3.39"
71 2.80" 80 3.15"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41" 5.5 0.22"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715

15 0.59"
10 0.39"
AF09ZB..K, AF12ZB..K, AF16ZB..K AF26ZB..K, AF30ZB..K, AF38ZB..K 1SBC100603S0201

Main dimensions mm, inches
