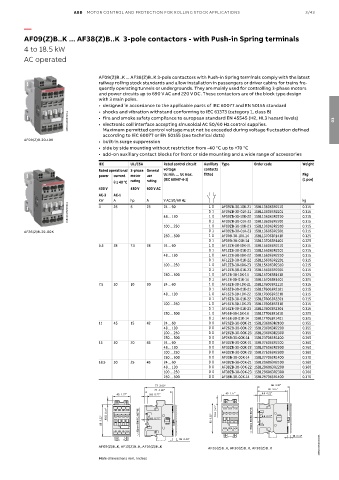

Page 95 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/43

—

AF09(Z)B..K ... AF38(Z)B..K 3-pole contactors - with Push-in Spring terminals
4 to 18.5 kW
AC operated

AF09(Z)B..K ... AF38(Z)B..K 3-pole contactors with Push-in Spring terminals comply with the latest
railway rolling stock standards and allow installation in passengers or driver cabins for trains fre-
quently operating tunnels or undergrounds. They are mainly used for controlling 3-phase motors
and power circuits up to 690 V AC and 220 V DC. These contactors are of the block type design
with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
1SBC101560V0014 • fire and smoke safety compliance to european standard EN 45545 (H2, HL3 hazard levels) 03
• electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies.
Maximum permitted control voltage must not be exceeded during voltage fluctuation defined
according to IEC 60077 or EN 50155 (see technical data)
AF09(Z)B-30-10K • built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (IEC 60947-4-1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V AC 50/60 Hz kg
1SBC101562V0014 4 25 5 25 24 ... 60 1 0 AF09ZB-30-10K-21 1SBL136063R2110 0.315
0 1
0.315
AF09ZB-30-01K-21 1SBL136063R2101
AF09ZB-30-10K-22 1SBL136063R2210
0.315
48 ... 130
1 0
100 ... 250 0 1 AF09ZB-30-01K-22 1SBL136063R2201 0.315
AF09ZB-30-10K-23 1SBL136063R2310
1 0
0.315
AF26(Z)B-30-00K 0 1 AF09ZB-30-01K-23 1SBL136063R2301 0.315
250 ... 500 1 0 AF09B-30-10K-14 1SBL137063R1410 0.325
0 1 AF09B-30-01K-14 1SBL137063R1401 0.325
5.5 28 7.5 28 24 ... 60 1 0 AF12ZB-30-10K-21 1SBL156063R2110 0.315
0 1 AF12ZB-30-01K-21 1SBL156063R2101 0.315
48 ... 130 1 0 AF12ZB-30-10K-22 1SBL156063R2210 0.315
0 1 AF12ZB-30-01K-22 1SBL156063R2201 0.315
100 ... 250 1 0 AF12ZB-30-10K-23 1SBL156063R2310 0.315
0 1 AF12ZB-30-01K-23 1SBL156063R2301 0.315
250 ... 500 1 0 AF12B-30-10K-14 1SBL157063R1410 0.325
0 1 AF12B-30-01K-14 1SBL157063R1401 0.325
7.5 30 10 30 24 ... 60 1 0 AF16ZB-30-10K-21 1SBL176063R2110 0.315
0 1 AF16ZB-30-01K-21 1SBL176063R2101 0.315
48 ... 130 1 0 AF16ZB-30-10K-22 1SBL176063R2210 0.315
0 1 AF16ZB-30-01K-22 1SBL176063R2201 0.315
100 ... 250 1 0 AF16ZB-30-10K-23 1SBL176063R2310 0.315
0 1 AF16ZB-30-01K-23 1SBL176063R2301 0.315
250 ... 500 1 0 AF16B-30-10K-14 1SBL177063R1410 0.325
0 1 AF16B-30-01K-14 1SBL177063R1401 0.325
11 45 15 42 24 ... 60 0 0 AF26ZB-30-00K-21 1SBL236063R2100 0.355
48 ... 130 0 0 AF26ZB-30-00K-22 1SBL236063R2200 0.355
100 ... 250 0 0 AF26ZB-30-00K-23 1SBL236063R2300 0.355
250 ... 500 0 0 AF26B-30-00K-14 1SBL237063R1400 0.365
15 50 20 45 24 ... 60 0 0 AF30ZB-30-00K-21 1SBL276063R2100 0.360
48 ... 130 0 0 AF30ZB-30-00K-22 1SBL276063R2200 0.360
100 ... 250 0 0 AF30ZB-30-00K-23 1SBL276063R2300 0.360
250 ... 500 0 0 AF30B-30-00K-14 1SBL277063R1400 0.370
18.5 50 25 45 24 ... 60 0 0 AF38ZB-30-00K-21 1SBL296063R2100 0.360
48 ... 130 0 0 AF38ZB-30-00K-22 1SBL296063R2200 0.360
100 ... 250 0 0 AF38ZB-30-00K-23 1SBL296063R2300 0.360
250 ... 500 0 0 AF38B-30-00K-14 1SBL297063R1400 0.370
77 3.03" 86 3.39"
71 2.80" 80 3.15"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"
10.5 0.41" 10.5 0.41" 5.5 0.22"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715

15 0.59"
10 0.39"
AF09(Z)B..K, AF12(Z)B..K, AF16(Z)B..K AF26(Z)B..K, AF30(Z)B..K, AF38(Z)B..K 1SBC100602S0201

Main dimensions mm, inches
