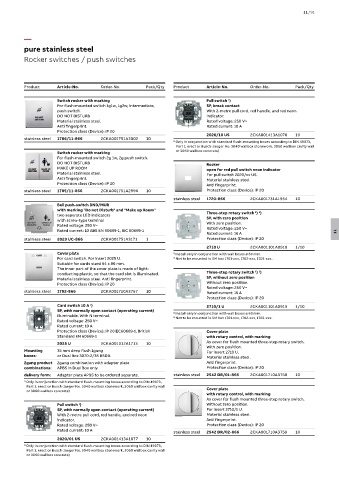

Page 1197 - Din prodcuts 2020

11/91

—
pure stainless steel
Rocker switches / push switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Switch rocker with marking Pull switch ) 1
For flush-mounted switch 1g1w, 1g2w, intermediate, SP, break contact
push switch. With 2-metre pull cord, red handle, and red neon
DO NOT DISTURB indicator.
Material stainless steel. Rated voltage: 250 V~
Anti fingerprint. Rated current: 10 A
Protection class (Device): IP 20
2020/10 US 2CKA001413A1076 10
stainless steel 1786/11-866 2CKA001751A3002 10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Switch rocker with marking or 3060 wallbox concrete)
For flush-mounted switch 2g 1w, 2g push switch.
DO NOT DISTURB Rocker
MAKE UP ROOM open for red pull switch neon indicator
Material stainless steel. For pull switch 2020/xx US.
Anti fingerprint. Material stainless steel.
Protection class (Device): IP 20 Anti fingerprint.
stainless steel 1785/11-866 2CKA001751A2996 10 Protection class (Device): IP 20
stainless steel 1720-866 2CKA001731A1954 10
Bell push-switch DND/MUR
with marking "Do not Disturb" and "Make up Room" 1 2
two seperate LED indicators Three-step rotary switch ) )
with screw-type terminal SP, with zero position
Rated voltage: 250 V~ With zero position.
Rated current: 10 ABS EN 60669-1, IEC 60669-1 Rated voltage: 250 V~ 11
Rated current: 16 A
stainless steel 2029 UC-866 2CKA001751A3171 1 Protection class (Device): IP 20
2710 U 2CKA001101A0918 1/10
Cover plate 1) Install only in conjunction with wall boxes ø 60 mm.
For card switch. For insert 2025 U. 2) Not to be mounted in SM box 1701-xxx, 1702-xxx, 1703-xxx.
Suitable for cards sized 54 x 86 mm.
The inner part of the cover plate is made of light- 1 2
conducting plastic, so that the card slot is illuminated. Three-step rotary switch ) )
Material stainless steel. Anti fingerprint. SP, without zero position
Protection class (Device): IP 20 Without zero position.
Rated voltage: 250 V~
stainless steel 1792-866 2CKA001710A3757 10 Rated current: 16 A
Protection class (Device): IP 20
Card switch 10 A ) 2710/1 U 2CKA001101A0919 1/10
1
SP, with normally open contact (operating current) 1) Install only in conjunction with wall boxes ø 60 mm.
Illuminable. With N terminal. 2) Not to be mounted in SM box 1701-xxx, 1702-xxx, 1703-xxx.
Rated voltage: 250 V~
Rated current: 10 A
Protection class (Device): IP 20IEC60669-1, British Cover plate
Standard EN 60669-1 with rotary control, with marking
2025 U 2CKA001012A1713 10 As cover for flush mounted three-step rotary switch.
With zero position.
Mounting 35 mm deep flush 1gang For insert 2710 U.
boxes: or Dual Box 3070-2/35 BSDB. Material stainless steel.
2gang product 2gang combination with adapter plate Anti fingerprint.
combinations: APBS in Dual Box only. Protection class (Device): IP 20
delivery form: Adapter plate APBS to be ordered separate. stainless steel 2542 DR/01-866 2CKA001710A3758 10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall Cover plate
or 3060 wallbox concrete)
with rotary control, with marking
As cover for flush mounted three-step rotary switch.
Pull switch ) 1 Without zero position.
SP, with normally open contact (operating current) For insert 2710/1 U.
With 2-metre pull cord, red handle, and red neon Material stainless steel.
indicator. Anti fingerprint.
Rated voltage: 250 V~ Protection class (Device): IP 20
Rated current: 10 A stainless steel 2542 DR/02-866 2CKA001710A3759 10
2020/01 US 2CKA001413A1077 10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
