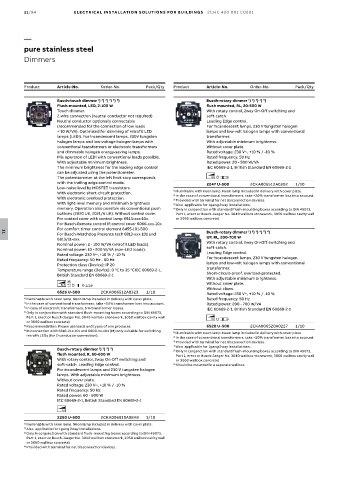

11/94 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
pure stainless steel
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
4
5
Busch-touch dimmer ) ) ) ) ) ) Busch-rotary dimmer ) ) ) ) )
1
2
3
4
5
6
1
2
Flush-mounted, LED, 2-100 W flush mounted, RL, 20-500 W
Touch dimmer. With rotary control, 2way On-Off switching and
2-wire connection (neutral conductor not required) soft-catch.
Neutral conductor optionally connectable Leading Edge control.
(recommended for the connection of low loads For incandescent lamps, 230 V tungsten halogen
< 10 W/VA). Optimised for dimming of retrofit LED lamps and low-volt halogen lamps with conventional
lamps (LEDi). For incandescent lamps, 230V tungsten transformer.
halogen lamps and low-voltage halogen lamps with With adjustable minimum brightness.
conventional transformers or electronic transformers Without cover plate.
and dimmable halogen energy-saving lamps. Rated voltage: 230 V~, +10 % / -10 %
Mix operaton of LEDi with conventional loads possible. Rated frequency: 50 Hz
With adjustable minimum brightness. Rated power: 20 - 500 W/VA
The minimum brightness for the leading edge control IEC 60669-2-1, British Standard EN 60669-2-1
can be adjusted using the potentiometer.
The potentiometer at the left limit stop corresponds
with the trailing edge control mode. 2247 U-500 2CKA006512A0302 1/10
Low-noise level by MOSFET transistors. 1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
With electronic short-circuit protection. 2) In the case of conventional transformers, take ~20% transformer loss into account.
With electronic overload protection. 3) Provided with terminal for net disconnection devices.
With light-level memory and minimum brightness 4) Also applicable for 1gang 2way installations.
memory. Operation also possible via conventional push 5) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
buttons (2020 US, 2021/6 UK). Without control cover. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
For control cover with control lamp 6543-xxx-10x. or 3060 wallbox concrete)
For Busch-Remote control IR control cover 6066-xxx-10x.
For comfort timer control element 6455-101-500. 1 2 3 4 5 6
For Busch-Watchdog Presence tech 6813-xxx-101 und Busch-rotary dimmer ) ) ) ) ) )
11
6813/11-xxx. UP, RL, 200-700 W
Nominal power: 2 - 100 W/VA (retrofit LED loads). With rotary control, 2way On-Off switching and
Nominal power: 10 - 200 W/VA (non-LED loads). soft-catch.
Rated voltage: 230 V~, +10 % / -10 % Leading Edge control.
Rated frequency: 50 Hz - 60 Hz For incandescent lamps, 230 V tungsten halogen
Protection class (Device): IP 20 lamps and low-volt halogen lamps with conventional
Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1, transformer.
British Standard EN 60669-2-1 Short-circuit-proof, overload-protected.
With adjustable minimum brightness.
Without cover plate.
Without claws.
6526 U-500 2CKA006512A0323 1/10 Rated voltage: 230 V~, +10 % / -10 %
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate. Rated frequency: 50 Hz
2) In the case of conventional transformers, take ~20% transformer loss into account. Rated power: 200 - 700 W/VA
3) In case of electronic transformers, 5 % transformer losses.
IEC 60669-2-1, British Standard EN 60669-2-1
4) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
5) Recommendation: Please use loads and types of one producer. 6520 U-500 2CKA006520A0227 1/10
6) In connection with 6810-21x-101 and 6800-xx-104 (M) only suitable for switching
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
retrofit LEDs (for 2-conductor connection). 2) In the case of conventional transformers, take ~20% transformer loss into account.
3) Provided with terminal for net disconnection devices.
4) Also applicable for 1gang 2way installations.
1
3
Busch-rotary dimmer ) ) ) ) 5) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
4
2
flush mounted, R, 60-600 W Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
With rotary control, 2way On-Off switching and or 3060 wallbox concrete)
soft-catch. Leading Edge control. 6) Should be mounted in a seperate wallbox.
For incandescent lamps and 230 V tungsten halogen
lamps. With adjustable minimum brightness.
Without cover plate.
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Rated power: 60 - 600 W
IEC 60669-2-1, British Standard EN 60669-2-1

2250 U-500 2CKA006515A0848 1/10
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
2) Also applicable for 1gang 2way installations.
3) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
4) Provided with terminal for net disconnection devices.
