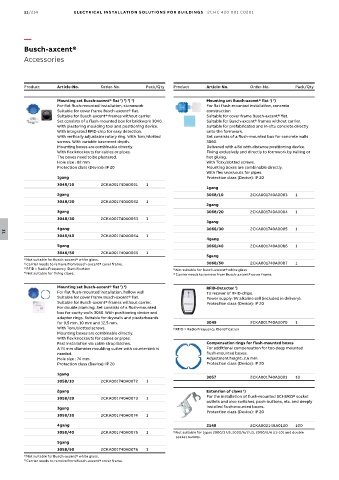

Page 1320 - Din prodcuts 2020

11/214 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Busch-axcent®
Accessories

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
1
Mounting set Busch-axcent® flat ) ) ) ) Mounting set Busch-axcent® flat ) )
4
2
1
3
For flat flush-mounted installation, stonework For flat flush-mounted installation, concrete
Suitable for cover frame Busch-axcent® flat. construction
Suitable for Busch-axcent® frames without carrier. Suitable for cover frame Busch-axcent® flat.
Set consists of a flush-mounted box for brickwork 3040. Suitable for Busch-axcent® frames without carrier.
With plastering moulding tool and positioning device. Suitable for prefabricated and in-situ concrete directly
With integrated RFID-chip for easy detection. onto the formwork.
With vertically adjustable rotary ring. With Torx/slotted Set consists of a flush-mounted box for concrete walls
screws. With variable basement depth. 3060.
Mounting boxes are combinable directly. Delivered with a lid with distance positioning device.
With flex knockouts for cables or pipes. Fixing exclusively and directly to formwork by nailing or
The boxes need to be plastered. hot gluing.
Hole size : 82 mm With Torx/slotted screws.
Protection class (Device): IP 20 Mounting boxes are combinable directly.
With flex knockouts for pipes.
1gang Protection class (Device): IP 20
3048/10 2CKA001740A0061 1
1gang
2gang 3068/10 2CKA001740A0083 1
3048/20 2CKA001740A0062 1
2gang
3gang 3068/20 2CKA001740A0084 1
3048/30 2CKA001740A0063 1
3gang
4gang 3068/30 2CKA001740A0085 1
3048/40 2CKA001740A0064 1
11
4gang
5gang 3068/40 2CKA001740A0086 1
3048/50 2CKA001740A0065 1
5gang
1) Not suitable for Busch-axcent® white glass.
3068/50 2CKA001740A0087 1
2) Carrier needs to remove from Busch-axcent® cover frame.
3) RFID = Radio Frequency IDentification
1) Not suitable for Busch-axcent® white glass.
4) Not suitable for fixing claws.
2) Carrier needs to remove from Busch-axcent® cover frame.
Mounting set Busch-axcent® flat ) ) RFID-Detector ) 1
2
1
For flat flush-mounted installation, hollow wall To recover of RFID-chips.
Suitable for cover frame Busch-axcent® flat. Power supply: 9V alkaline cell (included in delivery).
Suitable for Busch-axcent® frames without carrier. Protection class (Device): IP 20
For double planking. Set consists of a flush-mounted
box for cavity walls 3050. With positioning device and
adapter rings. Suitable for drywalls and plasterboards
for 9,5 mm, 10 mm and 12,5 mm. 3049 2CKA001740A0070 1
With Torx/slotted screws. 1) RFID = Radio Frequency IDentification
Mounting boxes are combinable directly.
With flex knockouts for cables or pipes.
Fast installation via cable strap latches. Compensation rings for flush-mounted boxes
A 74 mm diameter moulding cutter with countersink is For additional compensation for too deep mounted
needed. flush-mounted boxes.
Hole size : 74 mm Adjustment height: 2,6 mm
Protection class (Device): IP 20 Protection class (Device): IP 20
1gang
3057 2CKA001740A0081 10
3058/10 2CKA001740A0072 1
2gang Extension of claws )
1
3058/20 2CKA001740A0073 1 For the installation of flush-mounted SCHUKO® socket
outlets and also switches, push-buttons, etc. and deeply
3gang installed flush-mounted boxes.
Protection class (Device): IP 20
3058/30 2CKA001740A0074 1
4gang 2148 2CKA002148A0120 100
3058/40 2CKA001740A0075 1 1) Not suitable for types 2000/3 US, 2000/6/2 US, 2000/6/6 US-101 and double
socket outlets.
5gang
3058/50 2CKA001740A0076 1
1) Not suitable for Busch-axcent® white glass.
2) Carrier needs to remove from Busch-axcent® cover frame.
