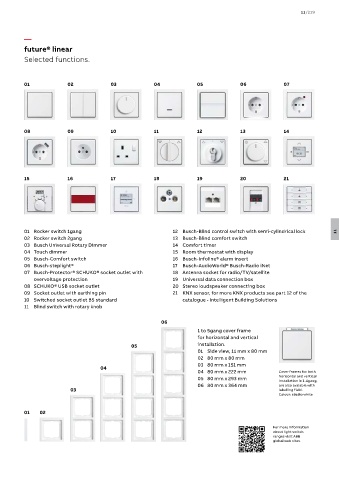

future® linear
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

15 16 17 18 19 20 21

01 Rocker switch 1gang 12 Busch-Blind control switch with semi-cylindrical lock 11
02 Rocker switch 2gang 13 Busch-Blind comfort switch
03 Busch Universal Rotary Dimmer 14 Comfort timer
04 Touch dimmer 15 Room thermostat with display
05 Busch-Comfort switch 16 Busch-Infoline® alarm insert
06 Busch-steplight® 17 Busch-AudioWorld® Busch-Radio iNet
07 Busch-Protector® SCHUKO® socket outlet with 18 Antenna socket for radio/TV/satellite
overvoltage protection 19 Universal data connection box
08 SCHUKO® USB socket outlet 20 Stereo loudspeaker connecting box
09 Socket outlet with earthing pin 21 KNX sensor, for more KNX products see part 12 of the
10 Switched socket outlet BS standard catalogue - Intelligent Building Solutions
11 Blind switch with rotary knob

06
1 to 5gang cover frame
for horizontal and vertical
05 installation.
01 Side view, 11 mm x 80 mm
02 80 mm x 80 mm
03 80 mm x 151 mm
04
04 80 mm x 222 mm Cover frames for both
05 80 mm x 293 mm horizontal and vertical
installation in 1-4gang,
06 80 mm x 364 mm are also avaiable with
03 labelling field.
Colour: studio white

01 02

For more information
about light switch
ranges visit ABB
