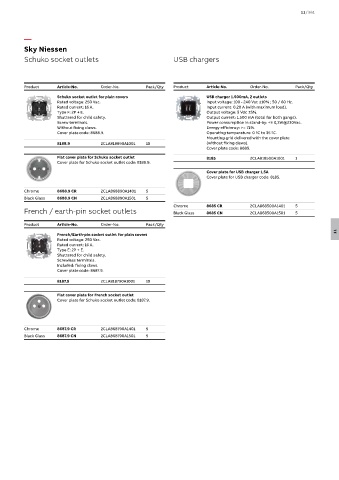

Page 1467 - Din prodcuts 2020

11/361

—
Sky Niessen
Schuko socket outlets USB chargers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Schuko socket outlet for plain covers USB charger 1.500mA, 2 outlets
Rated voltage: 250 Vac. Input voltage: 100 - 240 Vac ±10% ; 50 / 60 Hz.
Rated current: 16 A. Input current: 0,20 A (with maximum load).
Type F: 2P + E. Output voltage: 5 Vdc ±5%.
Shuttered for child safety. Output current: 1.500 mA (total for both gangs).
Screw terminals. Power consumption in stand-by: <= 0,3W@230Vac.
Without fixing claws. Energy efficiency: >= 71%.
Cover plate code: 8688.9. Operating temperature: 0 ºC to 35 ºC.
Mounting grid delivered with the cover plate
8188.9 2CLA818890A1001 10 (without fixing claws).
Cover plate code: 8685.
Flat cover plate for Schuko socket outlet 8185 2CLA818500A1001 1
Cover plate for Schuko socket outlet code: 8188.9.
Cover plate for USB charger 1,5A
Cover plate for USB charger code: 8185.

Chrome 8688.9 CR 2CLA868890A1401 5
Black Glass 8688.9 CN 2CLA868890A1501 5
Chrome 8685 CR 2CLA868500A1401 5
French / earth-pin socket outlets Black Glass 8685 CN 2CLA868500A1501 5

Product Article-No. Order-No. Pack/Qty
11
French/Earth-pin socket outlet for plain covers
Rated voltage: 250 Vac.
Rated current: 16 A.
Type E: 2P + E.
Shuttered for child safety.
Screwless terminals.
Included: fixing claws.
Cover plate code: 8687.9.
8187.9 2CLA818790A1001 10

Flat cover plate for French socket outlet
Cover plate for Schuko socket outlet code: 8187.9.

Chrome 8687.9 CR 2CLA868790A1401 5
Black Glass 8687.9 CN 2CLA868790A1501 5
