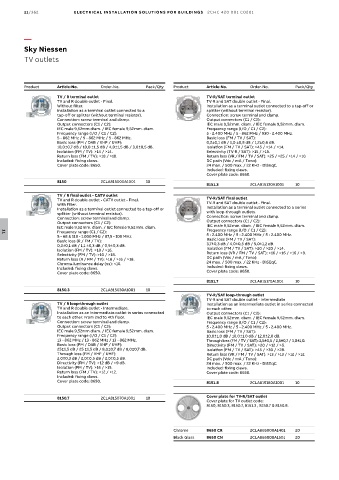

11/362 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Sky Niessen
TV outlets
Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty
TV / R terminal outlet TV-R/SAT terminal outlet
TV and R double outlet - Final. TV-R and SAT double outlet - Final.
Without filter. Installation as a terminal outlet connected to a tap-off or
Installation as a terminal outlet connected to a splitter (without terminal resistor).
tap-off or splitter (without terminal resistor). Connection: screw terminal and clamp.
Connection: screw terminal and clamp. Output connectors (C1 / C2):
Output connectors (C1 / C2): IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam.
IEC male 9,52mm diam. / IEC female 9,52 mm. diam. Frequency range (I/O / C1 / C2):
Frequency range (I/O / C1 / C2): 5 - 2.400 MHz / 5 - 862 MHz / 930 - 2.400 MHz.
5 - 862 MHz / 5 - 862 MHz / 5 - 862 MHz. Basic loss (FM / TV / SAT):
Basic loss (FM / DAB / VHF / UHF): 0,2±0,1 dB / 1,0 ±0,5 dB / 1,2±0,6 dB.
10,0±0,7 dB / 10,0 ±1,5 dB / 4,0±1,5 dB / 3,0±0,5 dB. Isolation (FM / TV / SAT): >45 / >14 / >14.
Isolation (FM / TV): >14 / >14. Selectivity (TV-R / SAT): >15 / >15.
Return loss (FM / TV): >18 / >10. Return loss (VR / FM / TV / SAT): >25 / >25 / >14 / >10.
Included: fixing claws. DC path (Vdc / mA / Tono):
Cover plate code: 8650. 24 max. / 500 max. / 22 KHz - DiSEqC.
Included: fixing claws.
Cover plate code: 8650.
8150 2CLA815000A1001 10
8151.3 2CLA815130A1001 10
TV / R final outlet - CATV outlet
TV and R double outlet - CATV outlet - Final. TV-R/SAT final outlet
With filter. TV-R and SAT double outlet - Final.
Installation as a terminal outlet connected to a tap-off or Installation as a terminal outlet connected to a series
splitter (without terminal resistor). with loop-through outlets.
Connection: screw terminal and clamp. Connection: screw terminal and clamp.
Output connectors (C1 / C2): Output connectors (C1 / C2):
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam. IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam.
Frequency range (C1 / C2): Frequency range (I/O / C1 / C2):
5 - 68 & 118 - 1.000 MHz / 87,5 - 108 MHz. 5 - 2.400 MHz / 5 - 2.400 MHz / 5 - 2.400 MHz.
11
Basic loss (R / FM / TV): Basic loss (FM / TV / SAT):
0,3±0,1 dB / 1,1 ±0,3 dB / 0,9±0,3 dB. 3,7±0,3 dB / 4,0±0,5 dB / 5,0±1,2 dB.
Isolation (FM / TV): >18 / >16. Isolation (FM / TV / SAT): >20 / >20 / >14.
Selectivity (FM / TV): >10 / >18. Return loss (VR / FM / TV / SAT): >16 / >16 / >16 / >9.
Return loss (R / FM / TV): >18 / >16 / >18. DC path (Vdc / mA / Tono):
Chroma-luminance delay (ns): <10. 24 max. / 500 max. / 22 KHz - DiSEqC.
Included: fixing claws. Included: fixing claws.
Cover plate code: 8650. Cover plate code: 8650.
8151.7 2CLA815170A1001 10
8150.3 2CLA815030A1001 10
TV-R/SAT loop-through outlet
TV-R and SAT double outlet - Intermediate
TV / R loop-through outlet Installation as an intermediate outlet in series connected
TV and R double outlet - Intermediate. to each other.
Installation as an intermediate outlet in series connected Output connectors (C1 / C2):
to each other. From 2nd to 4th floor. IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam.
Connection: screw terminal and clamp. Frequency range (I/O / C1 / C2):
Output connectors (C1 / C2): 5 - 2.400 MHz / 5 - 2.400 MHz / 5 - 2.400 MHz.
IEC male 9,52mm diam. / IEC female 9,52 mm. diam. Basic loss (FM / TV / SAT):
Frequency range (I/O / C1 / C2): 10,0±1,0 dB / 10,0±1,0 dB / 12,0±2,0 dB.
13 - 862 MHz / 13 - 862 MHz / 13 - 862 MHz. Through loss (FM / TV / SAT): 2,5±0,5 / 2,5±0,7 / 3,0±1,0.
Basic loss (FM / DAB / VHF / UHF): Directivity (FM / TV / SAT): >20 / >12 / >5.
25±1,5 dB / 25 ±1,5 dB / 8,0±0,7 dB / 8,0±0,7 dB. Isolation (FM / TV / SAT): >45 / >30 / >28.
Through loss (FM / VHF / UHF): Return loss (VR / FM / TV / SAT): >13 / >13 / >12 / >12.
2,0±0,3 dB / 2,0±0,5 dB / 2,0±0,5 dB. DC path (Vdc / mA / Tono):
Directivity (FM / TV): >12 dB / >9 dB. 24 max. / 500 max. / 22 KHz - DiSEqC.
Isolation (FM / TV): >16 / >15. Included: fixing claws.
Return loss (FM / TV): >12 / >12. Cover plate code: 8650.
Included: fixing claws.
Cover plate code: 8650. 8151.8 2CLA815180A1001 10
8150.7 2CLA815070A1001 10 Cover plate for TV-R/SAT outlet
Cover plate for TV outlet code:
8150, 8150.3, 8150.7, 8151.3 , 8150.7 & 8150.8.
Chrome 8650 CR 2CLA865000A1401 20
Black Glass 8650 CN 2CLA865000A1501 20
