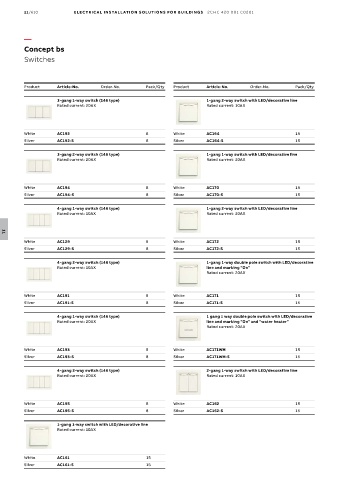

Page 1716 - Din prodcuts 2020

11/610 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Concept bs
Switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3-gang 1-way switch (146 type) 1-gang 2-way switch with LED/decorative line
Rated current: 20AX Rated current: 10AX

White AC192 8 White AC164 15
Silver AC192-S 8 Silver AC164-S 15

3-gang 2-way switch (146 type) 1-gang 1-way switch with LED/decorative line
Rated current: 20AX Rated current: 20AX

White AC194 8 White AC170 15
Silver AC194-S 8 Silver AC170-S 15

4-gang 1-way switch (146 type) 1-gang 2-way switch with LED/decorative line
Rated current: 10AX Rated current: 20AX

11
White AC129 8 White AC172 15
Silver AC129-S 8 Silver AC172-S 15

4-gang 2-way switch (146 type) 1-gang 1-way double pole switch with LED/decorative
Rated current: 10AX line and marking “On”
Rated current: 20AX

White AC191 8 White AC171 15
Silver AC191-S 8 Silver AC171-S 15

4-gang 1-way switch (146 type) 1 gang 1 way double pole switch with LED/decorative
Rated current: 20AX line and marking “On” and “water heater”
Rated current: 20AX

White AC193 8 White AC171WH 15
Silver AC193-S 8 Silver AC171WH-S 15

4-gang 2-way switch (146 type) 2-gang 1-way switch with LED/decorative line
Rated current: 20AX Rated current: 10AX

White AC195 8 White AC162 15
Silver AC195-S 8 Silver AC162-S 15
1-gang 1-way switch with LED/decorative line
Rated current: 10AX

White AC161 15
Silver AC161-S 15
