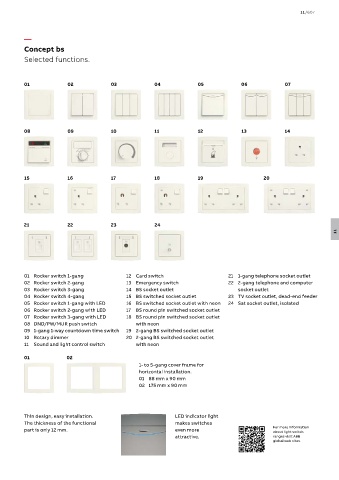

Concept bs
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

15 16 17 18 19 20

21 22 23 24
11

01 Rocker switch 1-gang 12 Card switch 21 1-gang telephone socket outlet
02 Rocker switch 2-gang 13 Emergency switch 22 2-gang telephone and computer
03 Rocker switch 3-gang 14 BS socket outlet socket outlet
04 Rocker switch 4-gang 15 BS switched socket outlet 23 TV socket outlet, dead-end feeder
05 Rocker switch 1-gang with LED 16 BS switched socket outlet with neon 24 Sat socket outlet, isolated
06 Rocker switch 2-gang with LED 17 BS round pin switched socket outlet
07 Rocker switch 3-gang with LED 18 BS round pin switched socket outlet
08 DND/PW/MUR push switch with neon
09 1-gang 1-way countdown time switch 19 2-gang BS switched socket outlet
10 Rotary dimmer 20 2-gang BS switched socket outlet
11 Sound and light control switch with neon

01 02
1- to 5-gang cover frame for
horizontal installation.
01 88 mm x 90 mm
02 175 mm x 90 mm

Thin design, easy installation. LED indicator light
The thickness of the functional makes switches
part is only 12 mm. even more For more information
about light switch
attractive. ranges visit ABB
global web sites.
