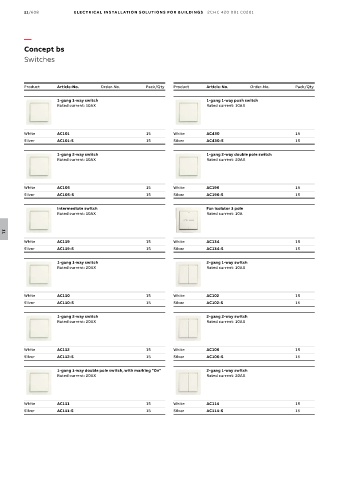

11/608 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Concept bs
Switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1-gang 1-way switch 1-gang 1-way push switch
Rated current: 10AX Rated current: 10AX

White AC101 15 White AC430 15
Silver AC101-S 15 Silver AC430-S 15

1-gang 2-way switch 1-gang 2-way double pole switch
Rated current: 10AX Rated current: 20AX

White AC105 15 White AC196 15
Silver AC105-S 15 Silver AC196-S 15

Intermediate switch Fan isolator 3 pole
Rated current: 10AX Rated current: 10A

11
White AC119 15 White AC134 15
Silver AC119-S 15 Silver AC134-S 15

1-gang 1-way switch 2-gang 1-way switch
Rated current: 20AX Rated current: 10AX

White AC110 15 White AC102 15
Silver AC110-S 15 Silver AC102-S 15

1-gang 2-way switch 2-gang 2-way switch
Rated current: 20AX Rated current: 10AX

White AC112 15 White AC106 15
Silver AC112-S 15 Silver AC106-S 15

1-gang 1-way double pole switch, with marking “On” 2-gang 1-way switch
Rated current: 20AX Rated current: 20AX

White AC111 15 White AC114 15
Silver AC111-S 15 Silver AC114-S 15
