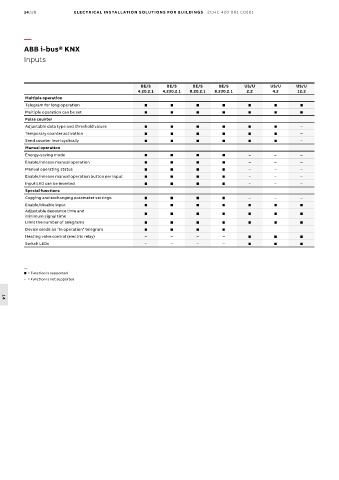

14/28 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Inputs

BE/S BE/S BE/S BE/S US/U US/U US/U
4.20.2.1 4.230.2.1 8.20.2.1 8.230.2.1 2.2 4.2 12.2
Multiple operation
Telegram for long operation       
Multiple operation can be set       
Pulse counter
Adjustable data type and threshold values       –
Temporary counter activation       –
Send counter level cyclically       –
Manual operation
Energy-saving mode     – – –
Enable/release manual operation     – – –
Manual operating status     – – –
Enable/release manual operation button per input     – – –
Input LED can be inverted     – – –
Special functions
Copying and exchanging parameter settings     – – –
Enable/disable input       
Adjustable debounce time and
minimum signal time       
Limit the number of telegrams       
Device sends an “In operation” telegram    
Heating valve control (electric relay) – – – –   
Switch LEDs – – – –   

—
 = Function is supported
– = Function is not supported
