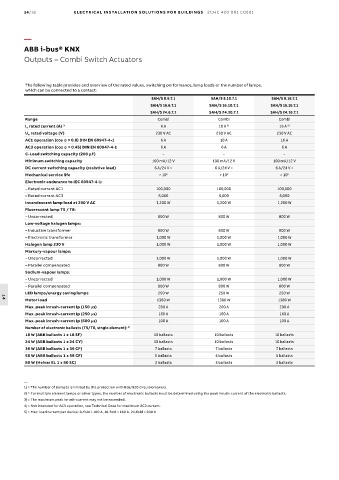

14/32 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Outputs – Combi Switch Actuators

The following table provides and overview of the rated values, switching performance, lamp loads or the number of lamps,
which can be connected to a contact:
SAH/S 8.6.7.1 SAH/S 8.10.7.1 SAH/S 8.16.7.1
SAH/S 16.6.7.1 SAH/S 16.10.7.1 SAH/S 16.16.7.1
SAH/S 24.6.7.1 SAH/S 24.10.7.1 SAH/S 24.16.7.1
Range Combi Combi Combi
I n rated current (A) 3) 6 A 10 A 5) 16 A 5)
U n rated voltage (V) 230 V AC 230 V AC 230 V AC
AC1 operation (cos φ = 0.8) DIN EN 60947-4-1 6 A 10 A 16 A
AC3 operation (cos φ = 0.45) DIN EN 60947-4-1 6 A 6 A 6 A
C-Load switching capacity (200 µF) – – –
Minimum switching capacity 100 mA/12 V 100 mA/12 V 100 mA/12 V
DC current switching capacity (resistive load) 6 A/24 V = 6 A/24 V = 6 A/24 V =
Mechanical service life > 10 6 > 10 6 > 10 6
Electronic endurance to IEC 60947-4-1:
– Rated current AC1 100,000 100,000 100,000
– Rated current AC3 6,000 6,000 6,000
Incandescent lamp load at 230 V AC 1,200 W 1,200 W 1,200 W
Fluorescent lamp T5 / T8:
– Uncorrected 800 W 800 W 800 W
Low-voltage halogen lamps:
– Inductive transformer 800 W 800 W 800 W
– Electronic transformer 1,000 W 1,000 W 1,000 W
Halogen lamp 230 V 1,000 W 1,000 W 1,000 W
Mercury-vapour lamps:
– Uncorrected 1,000 W 1,000 W 1,000 W
– Parallel compensated 800 W 800 W 800 W
Sodium-vapour lamps:
– Uncorrected 1,000 W 1,000 W 1,000 W
– Parallel compensated 800 W 800 W 800 W
LED lamps/energy saving lamps 250 W 250 W 250 W
Motor load 1380 W 1380 W 1380 W
14
Max. peak inrush-current Ip (150 μs) 200 A 200 A 200 A
Max. peak inrush-current Ip (250 μs) 160 A 160 A 160 A
Max. peak inrush-current Ip (600 μs) 100 A 100 A 100 A
Number of electronic ballasts (T5/T8, single element): 2)
18 W (ABB ballasts 1 x 18 SF) 10 ballasts 10 ballasts 10 ballasts
24 W (ABB ballasts 1 x 24 CY) 10 ballasts 10 ballasts 10 ballasts
36 W (ABB ballasts 1 x 36 CF) 7 ballasts 7 ballasts 7 ballasts
58 W (ABB ballasts 1 x 58 CF) 5 ballasts 5 ballasts 5 ballasts
80 W (Helvar EL 1 x 80 SC) 3 ballasts 3 ballasts 3 ballasts

—
1) = The number of ballasts is limited by the protection with B16/B20 circuit-breakers.
2) = For multiple element lamps or other types, the number of electronic ballasts must be determined using the peak inrush-current of the electronic ballasts.
3) = The maximum peak inrush-current may not be exceeded.
4) = Not intended for AC3 operation, see Technical Data for maximum AC3 current.
5) = Max. load current per device: 8-fold = 100 A, 16-fold = 160 A, 24-fold = 200 A
