ABB i-bus® KNX
Outputs – Combi Switch Actuators

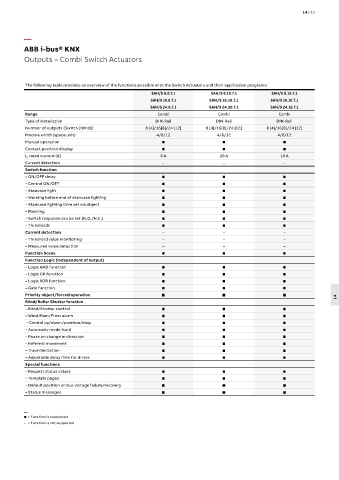

The following table provides an overview of the functions possible with the Switch Actuators and their application programs:
SAH/S 8.6.7.1 SAH/S 8.10.7.1 SAH/S 8.16.7.1
SAH/S 16.6.7.1 SAH/S 16.10.7.1 SAH/S 16.16.7.1
SAH/S 24.6.7.1 SAH/S 24.10.7.1 SAH/S 24.16.7.1
Range Combi Combi Combi
Type of installation DIN-Rail DIN-Rail DIN-Rail
Number of outputs (Switch [Blind]) 8 [4]/16[8]/24 [12] 8 [4]/16[8]/24 [12] 8 [4]/16[8]/24 [12]
Module width (space unit) 4/8/12 4/8/12 4/8/12
Manual operation   
Contact position display   
I n rated current (A) 6 A 10 A 16 A
Current detection – – –
Switch function
– ON/OFF delay   
– Central ON/OFF   
– Staircase light   
– Warning before end of staircase lighting   
– Staircase lighting time set via object   
– Flashing   
– Switch response can be set (N.O./N.C.)   
– Thresholds   
Current detection – – –
– Threshold value monitoring – – –
– Measured value detection – – –
Function Scene   
Function Logic (independent of output)
– Logic AND function   
– Logic OR function   
– Logic XOR function   
– Gate function   
Priority object/forced operation    14
Blind/Roller Shutter function
– Blind/Shutter control   
– Wind/Rain/Frost alarm   
– Central up/down/position/stop   
– Automatic mode (sun)   
– Pause on change in direction   
– Referent movement   
– Travel limitation   
– Adjustable delay time for drives   
Special functions
– Request status values   
– Template pages   
– Default position on bus voltage failure/recovery   
– Status messages   

—
 = Function is supported
– = Function is not supported
