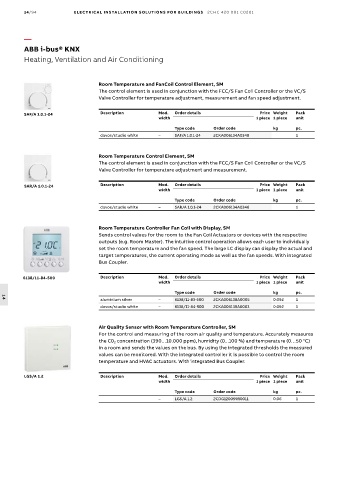

14/94 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Heating, Ventilation and Air Conditioning

Room Temperature and FanCoil Control Element, SM
The control element is used in conjunction with the FCC/S Fan Coil Controller or the VC/S
Valve Controller for temperature adjustment, measurement and fan speed adjustment.

SAF/A 1.0.1-24 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
davos/studio white – SAF/A 1.0.1-24 2CKA006134A0348 1

Room Temperature Control Element, SM
The control element is used in conjunction with the FCC/S Fan Coil Controller or the VC/S
Valve Controller for temperature adjustment and measurement.

SAR/A 1.0.1-24 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
davos/studio white – SAR/A 1.0.1-24 2CKA006134A0346 1

Room Temperature Controller Fan Coil with Display, SM
Sends control values for the room to the Fan Coil Actuators or devices with the respective
outputs (e.g. Room Master). The intuitive control operation allows each user to individually
set the room temperature and the fan speed. The large LC display can display the actual and
target temperatures, the current operating mode as well as the fan speeds. With integrated
Bus Coupler.

6138/11-84-500 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
aluminium silver – 6138/11-83-500 2CKA006138A0005 0.092 1
14
davos/studio white – 6138/11-84-500 2CKA006138A0003 0.092 1

Air Quality Sensor with Room Temperature Controller, SM
For the control and measuring of the room air quality and temperature. Accurately measures
the C0 2 concentration (390…10.000 ppm), humidity (0...100 %) and temperature (0…50 °C)
in a room and sends the values on the bus. By using the integrated thresholds the measured
values can be monitored. With the integrated controller it is possible to control the room
temperature and HVAC actuators. With integrated Bus Coupler.

LGS/A 1.2 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– LGS/A 1.2 2CDG120059R0011 0.06 1
