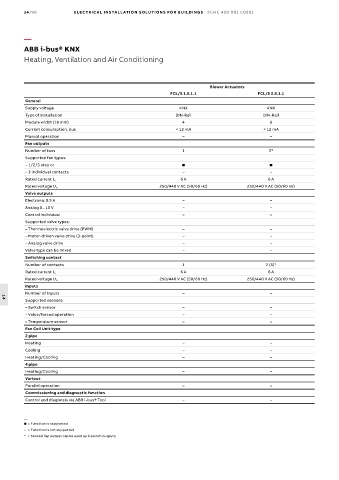

14/90 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Heating, Ventilation and Air Conditioning

Blower Actuators
FCL/S 1.6.1.1 FCL/S 2.6.1.1
General
Supply voltage KNX KNX
Type of installation DIN-Rail DIN-Rail
Module width (18 mm) 4 6
Current consumption, bus < 12 mA < 12 mA
Manual operation – –
Fan outputs
Number of fans 1 2*
Supported fan types:
– 1/2/3 step or  
– 3 individual contacts – –
6 A 6 A
Rated current I n
250/440 V AC (50/60 Hz) 250/440 V AC (50/60 Hz)
Rated voltage U n
Valve outputs
Electronic 0.5 A – –
Analog 0...10 V – –
Control individual – –
Supported valve types:
– Thermoelectric valve drive (PWM) – –
– Motor-driven valve drive (3-point) – –
– Analog valve drive – –
Valve type can be mixed – –
Switching contact
Number of contacts 1 2 (5)*
6 A 6 A
Rated current I n
250/440 V AC (50/60 Hz) 250/440 V AC (50/60 Hz)
Rated voltage U n
Inputs
Number of inputs – –
Supported sensors:
14
– Switch sensor – –
– Value/forced operation – –
– Temperature sensor – –
Fan Coil Unit type
2 pipe
Heating – –
Cooling – –
Heating/Cooling – –
4 pipe
Heating/Cooling – –
Various
Parallel operation – –
Commissioning and diagnostic function
Control and diagnosis via ABB i-bus® Tool – –

—
 = Function is supported
– = Function is not supported
* = Second fan output can be used as 3 switch outputs
