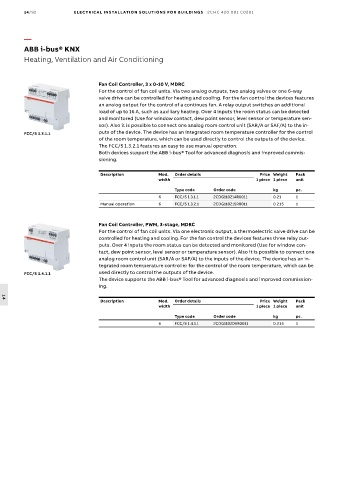

14/92 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Heating, Ventilation and Air Conditioning

Fan Coil Controller, 3 x 0-10 V, MDRC
For the control of fan coil units. Via two analog outputs, two analog valves or one 6-way
valve drive can be controlled for heating and cooling. For the fan control the devices features
an analog output for the control of a continues fan. A relay output switches an additional
load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected
and monitored (Use for window contact, dew point sensor, level sensor or temperature sen-
sor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the in-
FCC/S 1.3.1.1 puts of the device. The device has an integrated room temperature controller for the control
of the room temperature, which can be used directly to control the outputs of the device.
The FCC/S 1.3.2.1 features an easy to use manual operation.
Both devices support the ABB i-bus® Tool for advanced diagnosis and improved commis-
sioning.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
6 FCC/S 1.3.1.1 2CDG110214R0011 0.21 1
Manual operation 6 FCC/S 1.3.2.1 2CDG110215R0011 0.215 1

Fan Coil Controller, PWM, 3-stage, MDRC
For the control of fan coil units. Via one electronic output, a thermoelectric valve drive can be
controlled for heating and cooling. For the fan control the devices features three relay out-
puts. Over 4 inputs the room status can be detected and monitored (Use for window con-
tact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one
analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an in-
tegrated room temperature controller for the control of the room temperature, which can be
FCC/S 1.4.1.1 used directly to control the outputs of the device.
The device supports the ABB i-bus® Tool for advanced diagnosis and improved commission-
ing.

Description Mod. Order details Price Weight Pack
14
width 1 piece 1 piece unit
Type code Order code kg pc.
6 FCC/S 1.4.1.1 2CDG110209R0011 0.215 1
