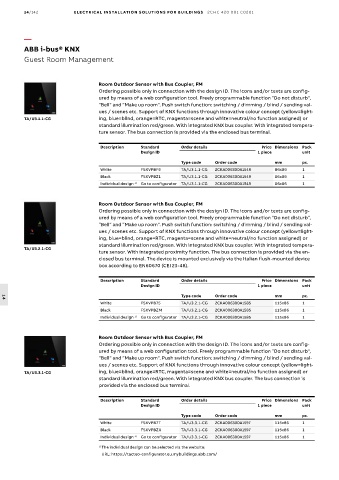

14/142 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Guest Room Management

Room Outdoor Sensor with Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. Push switch function: switching / dimming / blind / sending val-
ues / scenes etc. Support of KNX functions through innovative colour concept (yellow=light-
TA/U3.1.1-CG ing, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or
standard illumination red/green. With integrated KNX bus coupler. With integrated tempera-
ture sensor. The bus connection is provided via the enclosed bus terminal.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPBF6 TA/U3.1.1-CG 2CKA006300A1549 86x86 1
Black F5XVPBZ1 TA/U3.1.1-CG 2CKA006300A1549 86x86 1
Individual design 1) Go to confi gurator TA/U3.1.1-CG 2CKA006300A1549 86x86 1

Room Outdoor Sensor with Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. Push switch function: switching / dimming / blind / sending val-
ues / scenes etc. Support of KNX functions through innovative colour concept (yellow=light-
ing, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or
standard illumination red/green. With integrated KNX bus coupler. With integrated tempera-
TA/U3.2.1-CG
ture sensor. With integrated proximity function. The bus connection is provided via the en-
closed bus terminal. The device is mounted exclusively via the Italian flush-mounted device
box according to EN60670 (CEI 23-48).

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
14
White F5XVPB75 TA/U3.2.1-CG 2CKA006300A1585 115x86 1
Black F5XVPBZM TA/U3.2.1-CG 2CKA006300A1585 115x86 1
Individual design 1) Go to confi gurator TA/U3.2.1-CG 2CKA006300A1585 115x86 1

Room Outdoor Sensor with Bus Coupler, FM
Ordering possible only in connection with the design ID. The icons and/or texts are config-
ured by means of a web configuration tool. Freely programmable function ”Do not disturb“,
”Bell“ and ”Make up room“. Push switch function: switching / dimming / blind / sending val-
ues / scenes etc. Support of KNX functions through innovative colour concept (yellow=light-
TA/U3.3.1-CG ing, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or
standard illumination red/green. With integrated KNX bus coupler. The bus connection is
provided via the enclosed bus terminal.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit
Type code Order code mm pc.
White F5XVPB7T TA/U3.3.1-CG 2CKA006300A1597 115x86 1
Black F5XVPBZX TA/U3.3.1-CG 2CKA006300A1597 115x86 1
Individual design 1) Go to confi gurator TA/U3.3.1-CG 2CKA006300A1597 115x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
