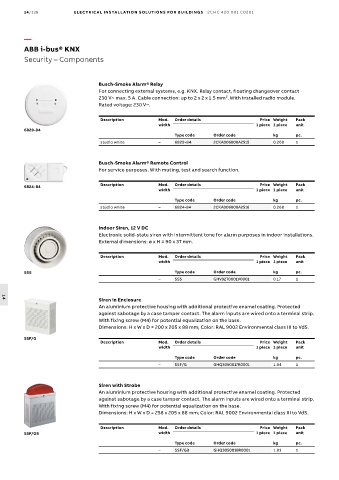

14/138 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Security – Components

Busch-Smoke Alarm® Relay
For connecting external systems, e.g. KNX. Relay contact, floating changeover contact
230 V~ max. 5 A. Cable connection: up to 2 x 2 x 1.5 mm². With installed radio module.
Rated voltage: 230 V~.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6829-84
Type code Order code kg pc.
studio white – 6829-84 2CKA006800A2515 0.268 1

Busch-Smoke Alarm® Remote Control
For service purposes. With muting, test and search function.

Description Mod. Order details Price Weight Pack
6824-84
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white – 6824-84 2CKA006800A2516 0.268 1

Indoor Siren, 12 V DC
Electronic solid-state siren with intermittent tone for alarm purposes in indoor installations.
External dimensions: ø x H = 90 x 37 mm.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SSS Type code Order code kg pc.
– SSS GHV9270001V0001 0.17 1

Siren in Enclosure
14
An aluminium protective housing with additional protective enamel coating. Protected
against sabotage by a case tamper contact. The alarm inputs are wired onto a terminal strip.
With fixing screw (M4) for potential equalization on the base.
Dimensions: H x W x D = 200 x 205 x 88 mm; Color: RAL 9002 Environmental class III to VdS.

SSF/G
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– SSF/G GHQ3050017R0001 1.64 1

Siren with Strobe
An aluminium protective housing with additional protective enamel coating. Protected
against sabotage by a case tamper contact. The alarm inputs are wired onto a terminal strip.
With fixing screw (M4) for potential equalization on the base.
Dimensions: H x W x D = 258 x 205 x 88 mm; Color: RAL 9002 Environmental class III to VdS.

Description Mod. Order details Price Weight Pack
SSF/GB width 1 piece 1 piece unit
Type code Order code kg pc.
– SSF/GB GHQ3050018R0001 1.81 1
