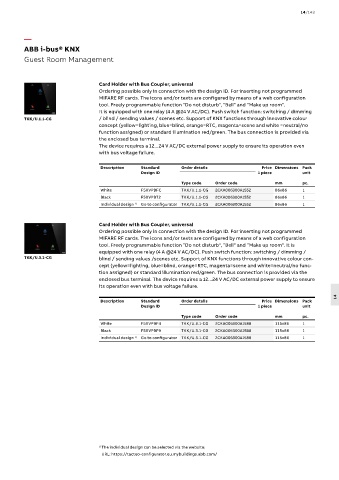

Page 1957 - Din prodcuts 2020

14/143

—
ABB i-bus® KNX
Guest Room Management

Card Holder with Bus Coupler, universal
Ordering possible only in connection with the design ID. For inserting not programmed
MIFARE RF cards. The icons and/or texts are configured by means of a web configuration
tool. Freely programmable function ”Do not disturb“, ”Bell“ and ”Make up room“.
It is equipped with one relay (4 A @24 V AC/DC). Push switch function: switching / dimming
TKK/U.1.1-CG / blind / sending values / scenes etc. Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white =neutral/no
function assigned) or standard illumination red/green. The bus connection is provided via
the enclosed bus terminal.
The device requires a 12...24 V AC/DC external power supply to ensure its operation even
with bus voltage failure.

Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPBFC TKK/U.1.1-CG 2CKA006300A1552 86x86 1
Black F5XVPB72 TKK/U.1.1-CG 2CKA006300A1552 86x86 1
Individual design 1) Go to confi gurator TKK/U.1.1-CG 2CKA006300A1552 86x86 1

Card Holder with Bus Coupler, universal
Ordering possible only in connection with the design ID. For inserting not programmed
MIFARE RF cards. The icons and/or texts are configured by means of a web configuration
tool. Freely programmable function ”Do not disturb“, ”Bell“ and ”Make up room“. It is
equipped with one relay (4 A @24 V AC/DC). Push switch function: switching / dimming /
TKK/U.3.1-CG blind / sending values /scenes etc. Support of KNX functions through innovative colour con-
cept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no func-
tion assigned) or standard illumination red/green. The bus connection is provided via the
enclosed bus terminal. The device requires a 12...24 V AC/DC external power supply to ensure
its operation even with bus voltage failure.
14
Description Standard Order details Price Dimensions Pack
Design ID 1 piece unit

Type code Order code mm pc.
White F5XVPBF4 TKK/U.3.1-CG 2CKA006300A1588 115x86 1
Black F5XVPBF9 TKK/U.3.1-CG 2CKA006300A1588 115x86 1
Individual design 1) Go to confi gurator TKK/U.3.1-CG 2CKA006300A1588 115x86 1

The individual design can be selected via the website:
1)
URL: https://tacteo-configurator.eu.mybuildings.abb.com/
