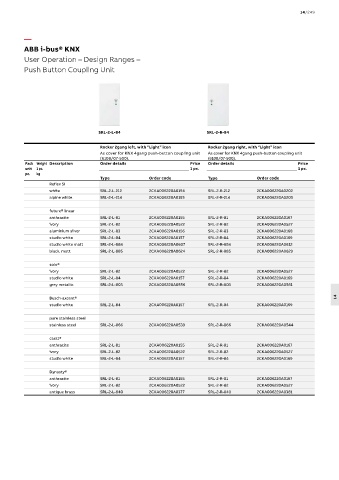

P. 2063

14/249




          —
          ABB i-bus® KNX
          User Operation – Design Ranges –
          Push Button Coupling Unit












                                    SRL-2-L-84                            SRL-2-R-84


                                    Rocker 2gang left, with “Light” icon  Rocker 2gang right, with “Light” icon
                                    As cover for KNX 4gang push-button coupling unit   As cover for KNX 4gang push-button coupling unit
                                    (6108/07-500).                        (6108/07-500).
          Pack Weight Description   Order details                   Price   Order details                 Price
          unit  1 pc.                                               1 pc.                                 1 pc.
          pc.  kg
                                    Type             Order code           Type             Order code
                  Reflex SI
                  white             SRL-2-L-212      2CKA006220A0194      SRL-2-R-212      2CKA006220A0202
                  alpine white      SRL-2-L-214      2CKA006220A0195      SRL-2-R-214      2CKA006220A0203

                  future® linear
                  anthracite        SRL-2-L-81       2CKA006220A0155      SRL-2-R-81       2CKA006220A0167
                  ivory             SRL-2-L-82       2CKA006220A0522      SRL-2-R-82       2CKA006220A0527
                  aluminium silver  SRL-2-L-83       2CKA006220A0156      SRL-2-R-83       2CKA006220A0168
                  studio white      SRL-2-L-84       2CKA006220A0157      SRL-2-R-84       2CKA006220A0169
                  studio white matt  SRL-2-L-884     2CKA006220A0607      SRL-2-R-884      2CKA006220A0612
                  black, matt       SRL-2-L-885      2CKA006220A0624      SRL-2-R-885      2CKA006220A0629


                  solo®
                  ivory             SRL-2-L-82       2CKA006220A0522      SRL-2-R-82       2CKA006220A0527
                  studio white      SRL-2-L-84       2CKA006220A0157      SRL-2-R-84       2CKA006220A0169
                  grey metallic     SRL-2-L-803      2CKA006220A0556      SRL-2-R-803      2CKA006220A0561

                  Busch-axcent®                                                                                        14
                  studio white      SRL-2-L-84       2CKA006220A0157      SRL-2-R-84       2CKA006220A0169

                  pure stainless steel
                  stainless steel   SRL-2-L-866      2CKA006220A0539      SRL-2-R-866      2CKA006220A0544

                  carat®
                  anthracite        SRL-2-L-81       2CKA006220A0155      SRL-2-R-81       2CKA006220A0167
                  ivory             SRL-2-L-82       2CKA006220A0522      SRL-2-R-82       2CKA006220A0527
                  studio white      SRL-2-L-84       2CKA006220A0157      SRL-2-R-84       2CKA006220A0169

                  Dynasty®
                  anthracite        SRL-2-L-81       2CKA006220A0155      SRL-2-R-81       2CKA006220A0167
                  ivory             SRL-2-L-82       2CKA006220A0522      SRL-2-R-82       2CKA006220A0527
                  antique brass     SRL-2-L-840      2CKA006220A0377      SRL-2-R-840      2CKA006220A0381
