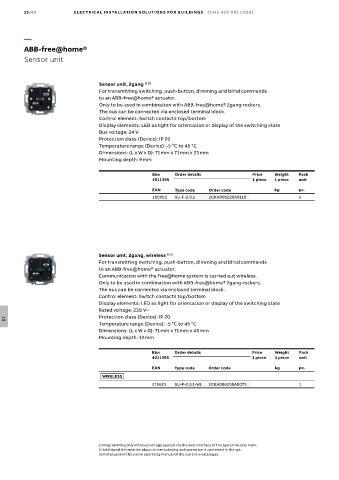

15/40 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
Sensor unit

Sensor unit, 2gang 1) 2)
For transmitting switching, push-button, dimming and blind commands
to an ABB-free@home® actuator.
Only to be used in combination with ABB-free@home® 2gang rockers.
The bus can be connected via enclosed terminal block.
Control element: Switch contacts top/bottom
Display elements: LED as light for orientation or display of the switching state
Bus voltage: 24 V
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 23 mm
Mounting depth: 9 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
180082 SU-F-2.0.1 2CKA006220A0118 1

Sensor unit, 2gang, wireless 1) 2)
For transmitting switching, push-button, dimming and blind commands
to an ABB-free@home® actuator.
Communication with the free@home system is carried out wireless.
Only to be used in combination with ABB-free@home® 2gang rockers.
The bus can be connected via enclosed terminal block.
Control element: Switch contacts top/bottom
Display elements: LED as light for orientation or display of the switching state
Rated voltage: 230 V~
Protection class (Device): IP 20
15
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
Mounting depth: 32 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
WIRELESS
215623 SU-F-2.0.1-WL 2CKA006200A0073 1

1) Programming only with bus voltage applied via the web interface of the System Access Point.
2) Additional information about commissioning and operation is contained in the sys-
tem manual and the online operating manual of the current e-catalogue.
