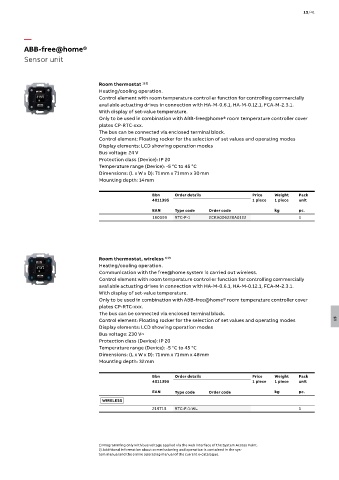

15/41

—
ABB-free@home®
Sensor unit

Room thermostat 1) 2)
Heating/cooling operation.
Control element with room temperature controller function for controlling commercially
available actuating drives in connection with HA-M-0.6.1, HA-M-0.12.1, FCA-M-2.3.1.
With display of set-value temperature.
Only to be used in combination with ABB-free@home® room temperature controller cover
plates CP-RTC-xxx.
The bus can be connected via enclosed terminal block.
Control element: Floating rocker for the selection of set values and operating modes
Display elements: LCD showing operation modes
Bus voltage: 24 V
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
Mounting depth: 14 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit

EAN Type code Order code kg pc.
180099 RTC-F-1 2CKA006220A0122 1

Room thermostat, wireless 1) 2)
Heating/cooling operation.
Communication with the free@home system is carried out wireless.
Control element with room temperature controller function for controlling commercially
available actuating drives in connection with HA-M-0.6.1, HA-M-0.12.1, FCA-M-2.3.1.
With display of set-value temperature.
Only to be used in combination with ABB-free@home® room temperature controller cover
plates CP-RTC-xxx.
The bus can be connected via enclosed terminal block.
Control element: Floating rocker for the selection of set values and operating modes 15
Display elements: LCD showing operation modes
Bus voltage: 230 V~
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 48 mm
Mounting depth: 32 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
WIRELESS
215715 RTC-F-1-WL 1

1) Programming only with bus voltage applied via the web interface of the System Access Point.
2) Additional information about commissioning and operation is contained in the sys-
tem manual and the online operating manual of the current e-catalogue.
