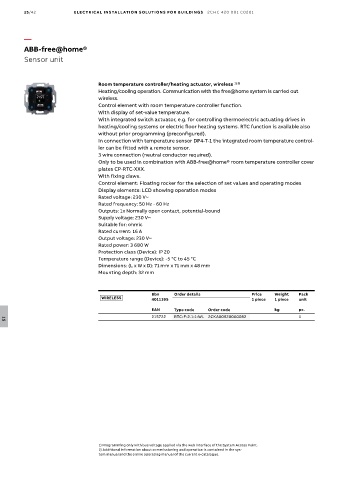

15/42 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
Sensor unit

Room temperature controller/heating actuator, wireless 1) 2)
Heating/cooling operation. Communication with the free@home system is carried out
wireless.
Control element with room temperature controller function.
With display of set-value temperature.
With integrated switch actuator, e.g. for controlling thermoelectric actuating drives in
heating/cooling systems or electric floor heating systems. RTC function is available also
without prior programming (preconfigured).
In connection with temperature sensor DP4-T-1 the integrated room temperature control-
ler can be fitted with a remote sensor.
3 wire connection (neutral conductor required).
Only to be used in combination with ABB-free@home® room temperature controller cover
plates CP-RTC-XXX.
With fixing claws.
Control element: Floating rocker for the selection of set values and operating modes
Display elements: LCD showing operation modes
Rated voltage: 230 V~
Rated frequency: 50 Hz - 60 Hz
Outputs: 1x Normally open contact, potential-bound
Supply voltage: 230 V~
Suitable for: ohmic
Rated current: 16 A
Output voltage: 230 V~
Rated power: 3 680 W
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 48 mm
Mounting depth: 32 mm

Bbn Order details Price Weight Pack
WIRELESS 4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
215722 RTC-F-2.1-1-WL 2CKA006200A0082 1
15

1) Programming only with bus voltage applied via the web interface of the System Access Point.
2) Additional information about commissioning and operation is contained in the sys-
tem manual and the online operating manual of the current e-catalogue.
