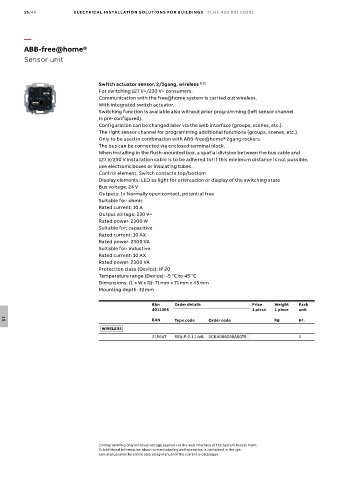

15/46 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
Sensor unit

Switch actuator sensor, 2/1gang, wireless 1) 2)
For switching 127 V~/230 V~ consumers.
Communication with the free@home system is carried out wireless.
With integrated switch actuator.
Switching function is available also without prior programming (left sensor channel
is pre-configured).
Configuration can be changed later via the web interface (groups, scenes, etc.).
The right sensor channel for programming additional functions (groups, scenes, etc.).
Only to be used in combination with ABB-free@home® 2gang rockers.
The bus can be connected via enclosed terminal block.
When installing in the flush-mounted box, a spatial division between the bus cable and
127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible,
use electronic boxes or insulating tubes.
Control element: Switch contacts top/bottom
Display elements: LED as light for orientation or display of the switching state
Bus voltage: 24 V
Outputs: 1x Normally open contact, potential free
Suitable for: ohmic
Rated current: 10 A
Output voltage: 230 V~
Rated power: 2300 W
Suitable for: capacitive
Rated current: 10 AX
Rated power: 2300 VA
Suitable for: inductive
Rated current: 10 AX
Rated power: 2300 VA
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 45 mm
Mounting depth: 32 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit

EAN Type code Order code kg pc.
15
WIRELESS
215647 SSA-F-2.1.1-WL 2CKA006200A0075 1

1) Programming only with bus voltage applied via the web interface of the System Access Point.
2) Additional information about commissioning and operation is contained in the sys-
tem manual and the online operating manual of the current e-catalogue.
