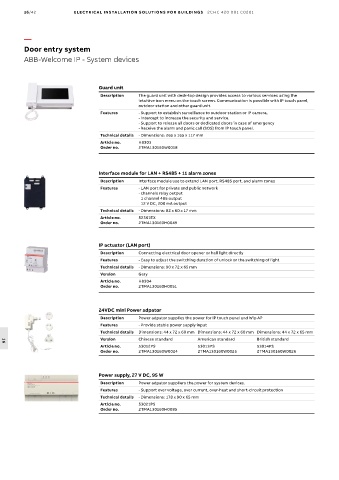

16/42 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Door entry system
ABB-Welcome IP - System devices

Guard unit
Description The guard unit with desk-top design provides access to various services using the
intuitive icon menu on the touch screen. Communication is possible with IP touch panel,
outdoor station and other guard unit.
Features - Support to establish surveillance to outdoor station or IP camera.
- Intercept to increase the security and service.
- Support to release all doors or dedicated doors in case of emergency
- Receive the alarm and panic call (SOS) from IP touch panel.
Technical details - Dimensions: 265 x 165 x 117 mm
Article no. H8303
Order no. 2TMA130160W0018

Interface module for LAN + RS485 + 11 alarm zones
Description Interface module use to extend LAN port, RS485 port, and alarm zones
Features - LAN port for private and public network
- channels relay output
1 channel 485 output
12 V DC, 200 mA output
Technical details - Dimensions: 82 x 60 x 17 mm
Article no. 52361EX
Order no. 2TMA130160H0049

IP actuator (LAN port)
Description Connecting electrical door opener or hall light directly
Features - Easy to adjust the switching duration of unlock or the switching of light
Technical details - Dimensions: 90 x 72 x 65 mm
Version Gery
Article no. H8304
Order no. 2TMA130160H0051

24VDC mini Power adpator
Description Power adpator supplies the power for IP touch panel and Wip AP
Features - Provide stable power supply input
Technical details Dimensions: 44 x 72 x 60 mm Dimensions: 44 x 72 x 60 mm Dimensions: 44 x 72 x 65 mm
Version Chinese standard American standard British standard
16
Article no. 53012PS 53013PS 53014PS
Order no. 2TMA130160W0024 2TMA130160W0025 2TMA130160W0026

Power supply, 27 V DC, 95 W
Description Power adpator suppliers the power for system devices.
Features - Support over voltage, over current, over-heat and short-circuit protection
Technical details - Dimensions: 178 x 90 x 65 mm
Article no. 53021PS
Order no. 2TMA130160H0085
