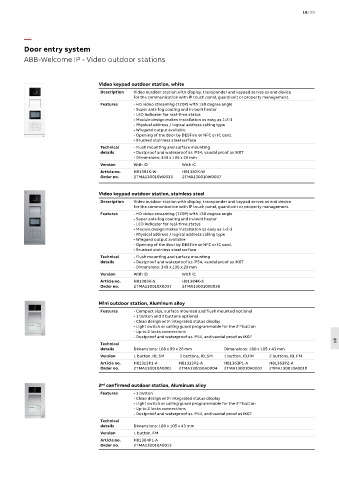

Door entry system
ABB-Welcome IP - Video outdoor stations

Video keypad outdoor station, white
Description Video outdoor station with display, transponder and keypad serves as end device
for the communication with IP touch panel, guard unit or property management.
Features - HD video streaming (720P) with 130 degree angle
- Super anti-fog coating and in-built heater
- LED indicater for real-time status
- Module design makes installation as easy as 1-2-3
- Physical address / logical address calling type
- Wiegand output available
- Opening of the door by DESFire or NFC or IC card.
- Brushed stainless steel surface
Technical - Flush mounting and surface mounting
details - Dustproof and waterproof as IP54, vandal proof as IK07
- Dimensions: 349 x 135 x 29 mm
Version With ID With IC
Article no. H81381K-W H81382K-W
Order no. 2TMA130010W0033 2TMA130010W0037

Video keypad outdoor station, stainless steel
Description Video outdoor station with display, transponder and keypad serves as end device
for the communication with IP touch panel, guard unit or property management.
Features - HD video streaming (720P) with 130 degree angle
- Super anti-fog coating and in-built heater
- LED indicater for real-time status
- Module design makes installation as easy as 1-2-3
- Physical address / logical address calling type
- Wiegand output available
- Opening of the door by DESFire or NFC or IC card.
- Brushed stainless steel surface
Technical - Flush mounting and surface mounting
details - Dustproof and waterproof as IP54, vandal proof as IK07
- Dimensions: 349 x 135 x 29 mm
Version With ID With IC
Article no. H81383K-S H81384K-S
Order no. 2TMA130010X0037 2TMA130010X0038

Mini outdoor station, Aluminum alloy
Features - Compact size, surface mounted and flush mounted optional
- 1 button and 2 buttons optional
- Clean design with integrated status display
- Light switch or calling guard programmable for the 2 button
nd
- Up to 2 locks connections
- Dustproof and waterproof as IP54, and vandal proof as IK07
Technical 16
details Dimensions: 168 x 99 x 26 mm Dimensions: 180 x 105 x 43 mm
Version 1 button, ID, SM 2 buttons, ID, SM 1 button, ID,FM 2 buttons, ID, FM
Article no. H81313P1-A H81313P2-A H81363P1-A H81363P2-A
Order no. 2TMA130010A0001 2TMA130010A0004 2TMA130010A0007 2TMA130010A0010

2 confirmed outdoor station, Aluminum alloy
nd
Features - 1 button
- Clean design with integrated status display
- Light switch or calling guard programmable for the 2 button
nd
- Up to 2 locks connections
- Dustproof and waterproof as IP54, and vandal proof as IK07
Technical
details Dimensions: 180 x 105 x 43 mm
Version 1 button, FM
Article no. H81364P1-A
Order no. 2TMA130010A0013
