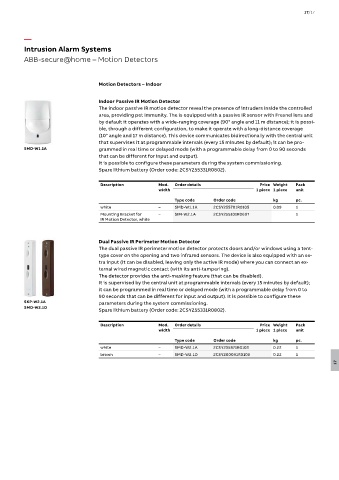

Intrusion Alarm Systems
ABB-secure@home – Motion Detectors

Motion Detectors – Indoor

Indoor Passive IR Motion Detector
The indoor passive IR motion detector reveal the presence of intruders inside the controlled
area, providing pet immunity. The is equipped with a passive IR sensor with Fresnel lens and
by default it operates with a wide-ranging coverage (90° angle and 11 m distance); it is possi-
ble, through a different configuration, to make it operate with a long-distance coverage
(10° angle and 17 m distance). This device communicates bidirectionally with the central unit
that supervises it at programmable intervals (every 15 minutes by default); it can be pro-
SMD-W1.1A grammed in real time or delayed mode (with a programmable delay from 0 to 90 seconds
that can be different for input and output).
It is possible to configure these parameters during the system commissioning.
Spare lithium battery (Order code: 2CSY255331R0802).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – SMD-W1.1A 2CSY255701R0105 0.09 1
Mounting Bracket for – SIM-W2.1A 2CSY255101R0607 1
IR Motion Detector, white

Dual Passive IR Perimeter Motion Detector
The dual passive IR perimeter motion detector protects doors and/or windows using a tent-
type cover on the opening and two infrared sensors. The device is also equipped with an ex-
tra input (it can be disabled, leaving only the active IR mode) where you can connect an ex-
ternal wired magnetic contact (with its anti-tampering).
The detector provides the anti-masking feature (that can be disabled).
It is supervised by the central unit at programmable intervals (every 15 minutes by default);
it can be programmed in real time or delayed mode (with a programmable delay from 0 to
90 seconds that can be different for input and output). It is possible to configure these
SKP-W2.1A parameters during the system commissioning.
SMD-W2.1D
Spare lithium battery (Order code: 2CSY255331R0802).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – SMD-W2.1A 2CSY235871R0103 0.22 1
brown – SMD-W2.1D 2CSY200091R0103 0.22 1
17
