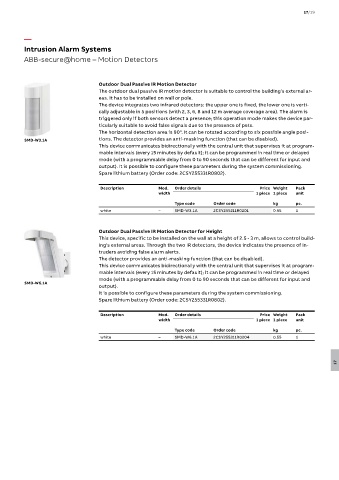

Intrusion Alarm Systems
ABB-secure@home – Motion Detectors

Outdoor Dual Passive IR Motion Detector
The outdoor dual passive IR motion detector is suitable to control the building's external ar-
eas. It has to be installed on wall or pole.
The device integrates two infrared detectors: the upper one is fixed, the lower one is verti-
cally adjustable in 5 positions (with 2, 3, 6, 8 and 12 m average coverage area). The alarm is
triggered only if both sensors detect a presence; this operation mode makes the device par-
ticularly suitable to avoid false signals due to the presence of pets.
The horizontal detection area is 90°. It can be rotated according to six possible angle posi-
SMD-W3.1A tions. The detector provides an anti-masking function (that can be disabled).
This device communicates bidirectionally with the central unit that supervises it at program-
mable intervals (every 15 minutes by default); it can be programmed in real time or delayed
mode (with a programmable delay from 0 to 90 seconds that can be different for input and
output). It is possible to configure these parameters during the system commissioning.
Spare lithium battery (Order code: 2CSY255331R0802).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – SMD-W3.1A 2CSY255211R0201 0.55 1

Outdoor Dual Passive IR Motion Detector for Height
This device, specific to be installed on the wall at a height of 2.5 - 3 m, allows to control build-
ing's external areas. Through the two IR detectors, the device indicates the presence of in-
truders avoiding false alarm alerts.
The detector provides an anti-masking function (that can be disabled).
This device communicates bidirectionally with the central unit that supervises it at program-
mable intervals (every 15 minutes by default); it can be programmed in real time or delayed
mode (with a programmable delay from 0 to 90 seconds that can be different for input and
SMD-W6.1A
output).
It is possible to configure these parameters during the system commissioning.
Spare lithium battery (Order code: 2CSY255331R0802).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – SMD-W6.1A 2CSY255311R0204 0.55 1
